APC Smart-UPS RT 6kVA 230V
Batteries & Runtime
Run Time : | View Runtime Graph |
Efficiency : | View Efficiency Graph |

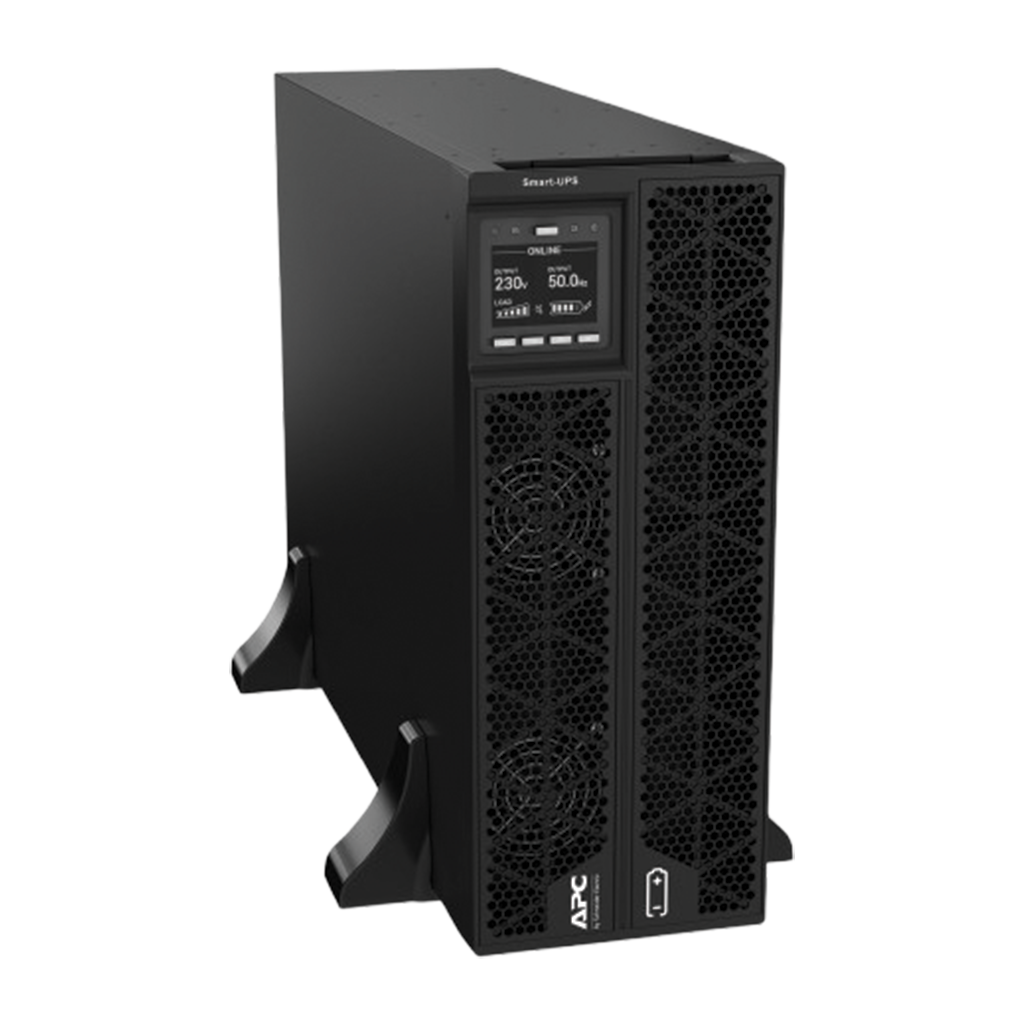

Front view
1. | Front bezel | 2. | LCD module |
1. | EPO terminal | 2. | USB port |
3. | RS232 port | 4. | BAT_T terminal |
5. | MBS terminal | 6. | Hard wire box input/output |
7,8. | Controllable outlet group 1, with circuit breaker | 9. | Battery input |
10,11. | Controllable outlet group 2, with circuit breaker | 12. | Smart Slot |
13. | Ground screw |
APC Smart-UPS RT 6kVA 230V
Smart-UPS On-Line is capable of supporting loads from 5 - 10kVA in a flexible, compact rack/tower convertible form. When business systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands. Smart-UPS RT On-Line is available at a competitive price, providing refreshed features and value to customers with demanding power conditions.
Main Input Voltage : | 230 V |
Other Input Voltage : | 220 V 240 V |
Main Output Voltage : | 230 V |
Other Output Voltage : | 220 V 240 V |
Rated power in W : | 6000 W |
Rated power in VA : | 6000 VA |
Number of power module free slots : | 0 |
Number of power module filled slots : | 0 |
Network frequency : | 40...70 Hz auto-sensing |
Number of input connectors : | 1 hard wire 3-wire (1P + N + E) |
Input voltage limits : | 160...285 V |
Maximum input current : | 30 A |
Number of battery filled slots : | 2 |
Battery life : | 3…5 year(s) |
Battery charger power : | 239 W rated |
Warranty : | 3 years repair or replace (excluding battery) and 2 years for battery |
