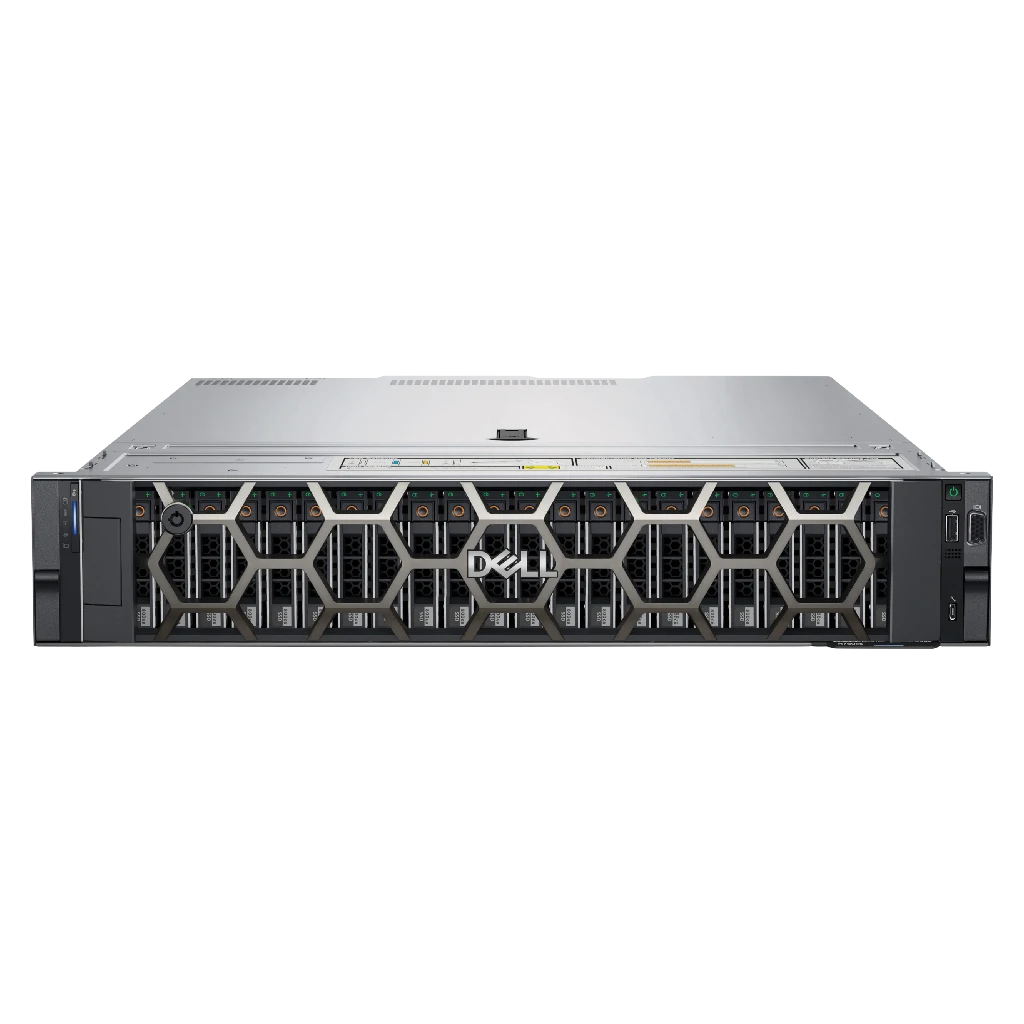

Dell PowerEdge R750xs
The new Dell EMC PowerEdge R750xs is a 2U, dual-socket, feature-optimized server with an ideal selection of CPU, I/O, and storage performance for scale-out environments. With it, you can Add additional power and cores: Up to two 3rd generation Intel Xeon Scalable processors, up to 32 cores per socket. Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec. Improve throughput, reduce latency: With up to 5 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support Include flexible storage: Up to 12 x 3.5 SAS/SATA HDDs or SSDs; or up to 16 x 2.5 SAS/SATA HDDs or SSDs, and 8 NVMe drives Enable virtualization, medium VM density or VDI, and software-defined storage node workloads
| 1. | Power button | 2. | USB 2.0-compliant port |
| 3. | iDRAC Direct LED indicator | 4. | iDRAC Direct port (MicroAB USB) |
| 1. | 1 PCIe expansion card slot | 2. | PCIe expansion card slot 2 |
| 3. | Expansion card riser with slot 3 and 4 | 4. | PCIe expansion card slot |
Rear View
| 5. | System identification button | 6. | PCIe expansion card slot | 7. | BOSS-S2 card module |
| 8. | Rear drive module | 9. | Power supply unit | 10. | Power supply unit (PSU 1) |
| 11. | VGA port | 12. | Optional OCP | 13. | USB 3.0 port |
| 14. | USB 2.0 port | 15. | iDRAC dedicated port | 16. | Ethernet ports |
Innovate at scale with challenging and emerging workloads
The new Dell EMC PowerEdge R750xs is a 2U, dual-socket, feature-optimized server with an ideal selection of CPU,I/O, and storage performance for scale-out environments.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
| Processor : | Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores |
| Memory : | 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s Supports registered ECC DDR4 DIMMs only |
| Storage Controller : | Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150 Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB External PERC (RAID): PERC H840, HBA355e |
| Drive Bays : | • Front bays: 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB • Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB |
| Power Supplies : | • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input) |
| Cooling options : | Air cooling |
| Fans : | Standard fans/High performance Silver fans/High performance Gold fans, Up to six hot swap fans |
| Dimensions : | • Height – 86.8 mm (3.41 inches) • Width – 482.0 mm (18.97 inches) • Depth – 707.78 mm (27.85 inches) – without bezel • 721.62 mm (28.4 inches) – with bezel |
| Form Factor : | 2U rack server |
| Embedded Management : | • iDRAC9 • iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module |
| Bezel : | Optional LCD bezel or security bezel |
| OpenManage Software : | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
| Mobility : | OpenManage Mobile |
| Integrations and Connections : | • BMC Truesight • Microsoft System Center • OpenManage Integrations • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • OpenManage Connections • Nagios Core • Nagios XI |
| Security : | • Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC : | 2 x 1 GbE LOM |
| Network Options : | 1 x OCP 3.0 |
| GPU Options : | Not supported |
| Ports : | • Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA • Rear Ports: 1 x USB 2.0, 1 x Serial (optional), 1 x USB 3.0, 2 x Ethernet, 1 x VGA • Internal Ports: 1 x USB 3.0 (optional) |
| PCIe : | • Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots • 3 x 16 Gen4 low profile • 2 x 16 Gen4 low profile (optional) • 1 x 8 Gen3 ( x 4 lane) low profile |
