Dell PowerEdge T150
The Dell PowerEdge T150 is Dell’s latest single-socket, entry-level 4U mini-tower server that is purposely designed to serve general-purpose business applications for both Small and Medium Businesses (SMB) and Remote Office/Branch Office (ROBO).

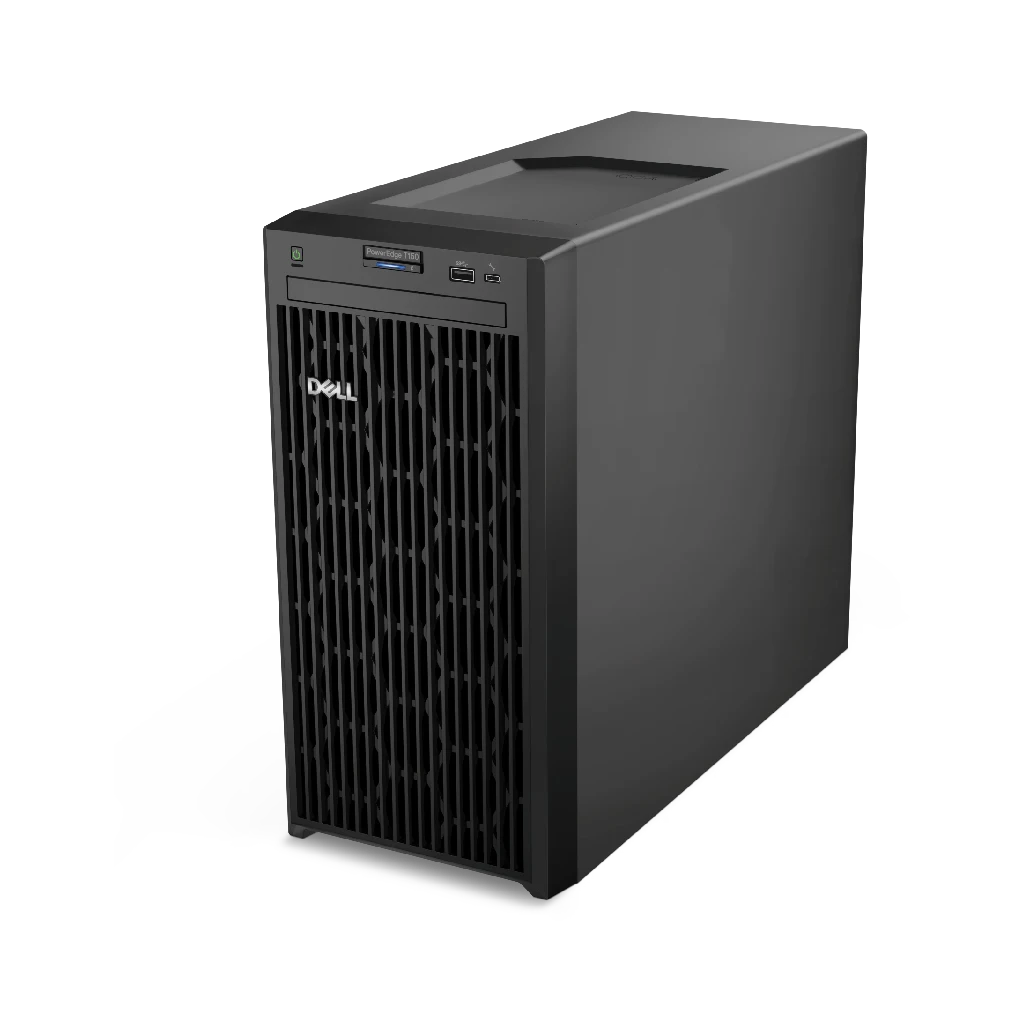

Front View
1. | Power button | 2. | System health and ID indicator |
3. | USB 3.0 port | 4. | iDRAC direct micro USB port |
5. | Optical drive (optional) |

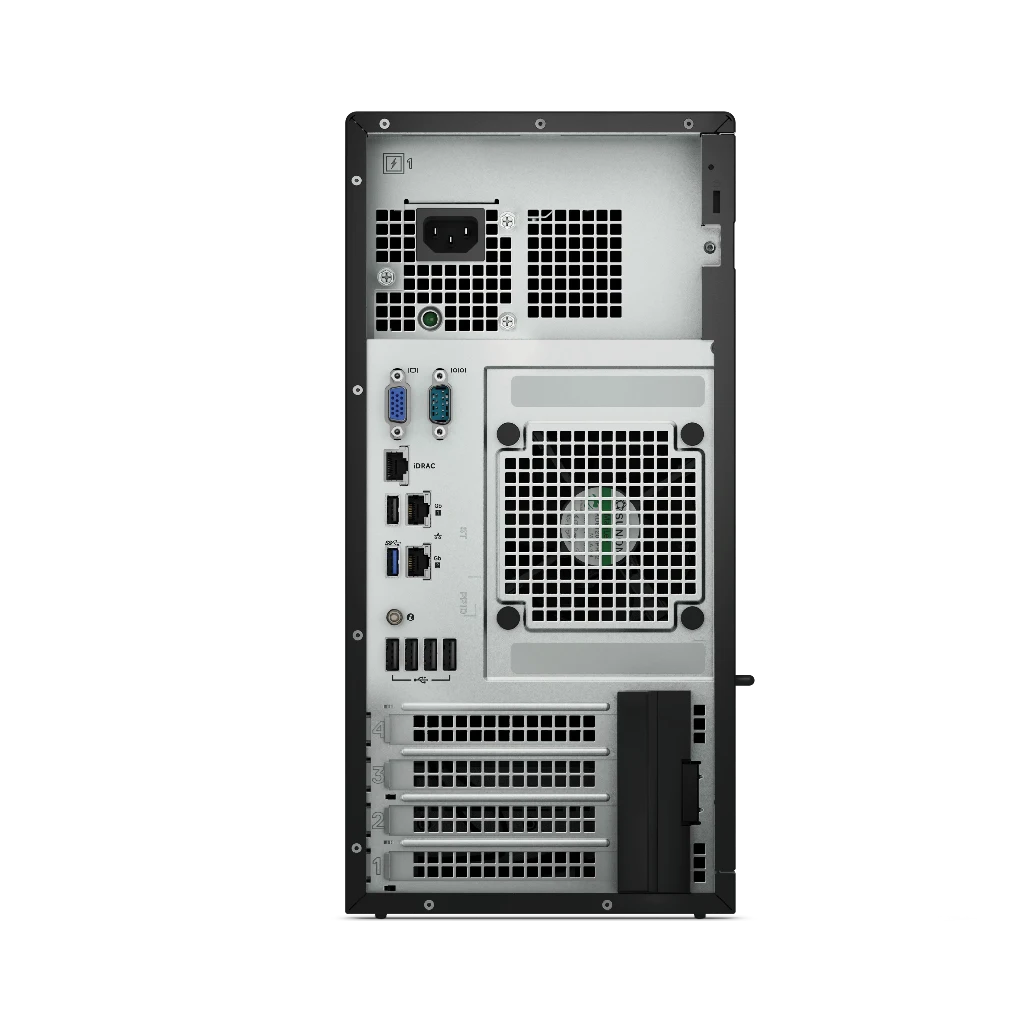

1. | Security Cable Lock | 2. | iDRAC MAC address and iDRAC secure password label |
3. | Service Tag, Express Service Code, QRL label | 4. | OpenManage Mobile (OMM) label |
5. | PCIe expansion card slots (4) | 6. | USB 2.0 port (4) |
7. | System identification button | 8. | NIC port (Gb 2) |
9. | USB 3.0 port (2) | 10. | USB 2.0 port (1) |
11. | NIC port (Gb 1) | 12. | iDRAC ethernet port |
13. | VGA port |
Your Innovation Engine for businesses of all sizes
The Dell EMC PowerEdge T150, powered by Intel Xeon E-2300 processors, delivers powerful compute for common business applications and streamlines productivity. It supports 3200 MT/s DDR4 UDIMMs, up to 128 GB for memory intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge T150 supports PCIe Gen 4 and offers enhanced thermal efficiency to support increasing power and thermal requirements. With quiet, office-friendly acoustics, the PowerEdge T150 is an ideal tower server for business critical workloads and point of sale transactions for small to midsize businesses inside and outside of the data center.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
Processor : | One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores |
Memory : | • Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s • Supports unregistered ECC DDR4 DIMMs only • NOTE: For Pentium processor, maximum memory speed supported is 2666 MT/s |
Storage Controller : | • Internal controllers (RAID): PERC H755, PERC H345, HBA355i, S150 • Internal Boot: USB, Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs • External HBAs (non-RAID): HBA355e |
Drive bays : | 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB |
Power supplies : | • 300W Bronze 100-240 VAC, cabled • 400W Platinum 100-240 VAC, cabled (available only from Dec’21) |
Fans : | One cabled fan |
Dimensions : | • Height: 360 mm (14.17 inches) • Width: 175 mm (6.88 inches) • Depth: 453.75 mm (17.86 inches) with bezel |
Form Factor : | 4U mini tower server |
Embedded management : | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module |
Bezel : | Security bezel |
OpenManage Software : | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
Mobility : | OpenManage Mobile |
Integrations and Connections : | OpenManage Integrations: BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager, OpenManage Connections: IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core, Nagios XI |
Security : | • Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
Embedded NIC : | 2 x 1 GbE LOM |
Ports : | • Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0, Internal Ports, 1 x USB 3.0 (optional) • Rear Ports, 5 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial port, 1 x VGA |
PCIe : | 4 PCIe slots: 1 x16 Gen4 ( x 16 connector) full height, half length • 1 x 4 Gen4 ( x 8 connector) full height, half length • 1 x 4 Gen3 ( x 8 connector) full height, half length • 1 x 1 Gen3 ( x 1 connector) full height, half length |
Operating System and Hypervisors : | • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi (support only from Dec’21) |
