Dell Precision 3660 Tower Workstation

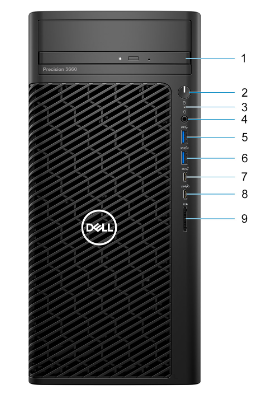

Front View :

1. Optical disk-drive 2. Power button with diagnostic LED
3. Hard-disk drive activity light 4. Universal audio jack
5. USB 3.2 Gen 1 (5 Gbps) port 6. USB 3.2 Gen 1 (5 Gbps) port with Power Share
7. USB 3.2 Type-C Gen 2 (10 Gbps) port 8. USB 3.2 Type-C Gen 2 x 2 (20 Gbps) port with Power Share
9. SD 4.0 card reader
1. Side cover release latch 2. Line-out audio port
3. Two DisplayPort 1.4 ports 4. Two USB 3.2 Type-C Gen 2 (10 Gbps) ports
5. Two USB 3.2 Gen 2 (10 Gbps) ports 6. Two USB 2.0 (480 Mbps) ports with SmartPower
7. Expansion card slots 8. Power cord connector port
9. Power supply diagnostic light 10. Service tag label
11. RJ45 port 10/100/1000 Mbps 12. HDMI 2.0/ DisplayPort 1.4/ VGA/ USB Type-C with DisplayPort Alt mode (optional)
13. 2.5 GbE RJ-45 port (optional) 14. Kensington security-cable slot

Rear View :

Extreme scalability in mini-tower design
  • CPU cooling option: Get improved cooling with Advanced Air and Premium Liquid Coolers.
  • Lockable, removable front storage: Get improved cooling with Advanced Air and Premium Liquid Coolers.
  • Faster ports: Easy access to ports (up to 20Gbps).
  • Removable power supply: Use the release to easily remove the power supply.
Powerful performance
  • You won’t believe your eyes: Whether you’re working on website design or CAD, Intel integrated graphics or up to AMD Radeon Pro or NVIDIA pro graphics (up to 350W) ensure a smooth and elevated visual experience every time.
  • Slowing down isn’t an option: 125W 12th Gen Intel Core processors. Up to 128GB or up to 4400MHz DDR5 memory. Up to 28TB of RAID-capable storage.
  • Convenient connectivity: Integrated Wi-Fi 6 and Bluetooth 5.2 with vPro.
Optional air and liquid cooling

The flow of air or liquid keeps your internals cool, and your workspace silent, so your creativity is never interrupted. Advanced thermals help to keep your system running at peak performance.

Processor Options : • 13th Generation Intel Core i9-13900K vPro, 36 MB cache, 24 cores (8P + 16E), 3.0GHz to 5.8GHz, 125W • 13th Generation Intel Core i9-13900 vPro, 36 MB cache, 24 cores (8P + 16E), 2.0GHz to 5.6GHz, 65W • 13th Generation Intel Core i7-13700K vPro, 30 MB cache, 16 cores (8P + 8E), 3.4GHz to 5.4GHz, 125W • 13th Generation Intel Core i7-13700 vPro, 30 MB cache, 16 cores (8P + 8E), 2.1GHz to 5.2GHz, 65W • 13th Generation Intel Core i5-13600K vPro, 24 MB cache, 14 cores (6P + 8E), 3.5GHz to 5.1GHz, 125W • 13th Generation Intel Core i5-13600 vPro, 24 MB cache, 14 cores (6P + 8E), 2.7GHz to 5.0GHz, 65W • 13th Generation Intel Core i5-13500 vPro, 24 MB cache, 14 cores (6P + 8E), 2.5GHz to 4.8GHz, 65W • 13th Generation Intel Core i5-13400, 20 MB cache, 10 cores (6P + 4E), 2.5GHz to 4.6GHz, 65W • 13th Generation Intel Core i3-13100, 12 MB cache, 4 cores (4P + 0E), 3.4 GHz to 4.5GHz, 60W • 12th Generation Intel Core i9-12900K vPro, 30MB cache, 16 cores, (8P+8E), 3.2GHz to 5.2GHz, 125W • 12th Generation Intel Core i9-12900 vPro, 30MB cache, 16 cores, (8P+8E), 2.4GHz to 5.1GHz, 65W • 12th Generation Intel Core i7-12700K vPro, 25MB cache, 12 cores, (8P+4E), 3.6GHz to 5.0GHz, 125W • 12th Generation Intel Core i7-12700 vPro, 25MB cache, 12 cores, (8P+4E), 2.1GHz to 4.9GHz, 65W • 12th Generation Intel Core i5-12600K vPro, 20MB cache, 10 cores, (6P+4E), 3.7GHz to 4.9GHz, 125W • 12th Generation Intel Core i5-12600 vPro, 18MB cache, 6 cores, (6P+0E), 3.3GHz to 4.8GHz, 65W • 12th Generation Intel Core i5-12500 vPro, 18MB cache, 6 cores, (6P+0E), 3.0GHz to 4.6GHz, 65W • 12th Generation Intel Core i3-12100 vPro, 12MB cache, 4 cores, (4P+0E), 3.3GHz to 4.3GHz, 60W
Operating System : • Windows 11 Home, 64-bit • Windows 11 Pro, 64-bit • Windows 10 Home, 64-bit • Windows 10 Pro, 64-bit • Windows 10 IoT 2021 LTSC (OEM Only)35 • Windows 10 CMIT Government Edition, 64-bit (China only) • Ubuntu Linux 22.04 LTS, 64-bit • Kylin V 10 SP1 • Red Hat Enterprise Linux 8.6 (12th Gen Intel processors only)
Memory Options : • 4 DIMM Slots: Up to 128GB or up to 4400MHz ECC and Non-ECC DDR5 Maximum speed: 4400MHz, Maximum capacity: 128GB, Maximum memory speed varies by the following configuration on each channel. If the 2 DIMM configuration is not symmetrical, the maximum speed may drop. 4400MHz: 1 DIMM-1R/2R, 4000MHz: 2 DIMM-1R, 3600MHz: 2 DIMM-2R • 8GB, 1 x 8GB, DDR5, 4400MHz, Non-ECC • 16GB, 2 x 8GB, DDR5, 4400MHz, Non-ECC, dual-channel • 32GB, 2 x 16GB, DDR5, 4400MHz, Non-ECC, dual-channel • 64GB, 2 x 32GB, DDR5, 4400MHz, Non-ECC, dual-channel • 32GB, 4 x 8GB, DDR5, 4000MHz, Non-ECC, dual-channel • 64GB, 4 x 16GB, DDR5, 4000MHz, Non-ECC, dual-channel • 128GB, 4 x 32GB, DDR5, 3600MHz, Non-ECC, dual-channel • 16GB, 1 x 16GB, DDR5, 4400MHz, ECC • 32GB, 2 x 16GB, DDR5, 4400MHz, ECC, dual-channel • 64GB, 2 x 32GB, DDR5, 4400MHz, ECC, dual-channel • 64GB 4 x 16GB, DDR5, 4000MHz, ECC, dual-channel • 128GB 4 x 32GB, DDR5, 3600MHz, ECC, dual-channel31
Storage : • Support for up to M.2 2280 PCIe NVMe SSD on motherboard and up to 3.5-inch SATA33,34 or 2.5-inch SATA HDDs Front accessible 2.5-inch SATA or 3.5-inch SATA HDD (with lockable door and key) available with specific storage configurations Support for Intel Ready Mode technology Support for up to additional PCIe SSD on Dell Precision Ultra-Speed drive with active cooling RAID 0/1/5/10 available • M.2 2230, 256GB, PCIe NVMe Class 35 SSD • M.2 2280, 512GB, PCIe NVMe Class 40 SSD • M.2 2280, 1TB, PCIe NVMe Class 40 SSD • M.2 2280, 2TB, PCIe NVMe Class 40 SSD • M.2 2280, 4TB, PCIe NVMe Class 40 SSD • M.2 2280, 512GB, PCIe NVMe SSD, Self-Encrypting drive • M.2 2280, 1TB, PCIe NVMe SSD, Self-Encrypting drive • 2.5-inch, 500GB, 7200RPM, SATA, HDD • 2.5-inch, 500GB, 7200RPM, Self-Encrypting, Opal 2.0, FIPS, SATA, HDD • 2.5-inch, 1TB, 7200RPM, SATA, HDD • 3.5-inch, 1TB, 7200RPM, SATA, HDD • 3.5-inch, 2TB, 7200RPM, SATA, HDD • 3.5-inch, 4TB, 5400RPM, SATA, HDD • 3.5-inch, 4TB, 7200RPM, SATA, Enterprise HDD32 • 3.5-inch, 8TB, 7200RPM, SATA, Enterprise HDD32
Graphics : • Intel UHD Graphics 730 for 12th Generation Core i3, 13th generation core i3 and core i5-13400 processors • Intel UHD Graphics 770 for 12th generation core i5/i7/i9, 13th generation core i7/i9 and i5-13500, i5-13600, i5-13600K processor • NVIDIA RTX A6000, 48GB, GDDR6 • NVIDIA RTX A5500, 24GB, GDDR6 • NVIDIA RTX A5000, 24GB, GDDR6 • NVIDIA RTX A4500, 20GB, GDDR6 • NVIDIA RTX A4000, 16GB, GDDR6 • NVIDIA RTX A2000, 12GB, GDDR6 • NVIDIA T1000, 8GB, GDDR6 • NVIDIA T400, 4GB, GDDR6 • AMD Radeon Pro W6800, 32GB, GDDR6 • AMD Radeon Pro RX6900XT, 16GB, GDDR6 • AMD Radeon Pro W6600, 8GB, GDDR6 • AMD Radeon Pro W6400, 4GB, GDDR6
Warranty : • 1 years ProSupport with Next Business Day on-site service • 2 years ProSupport with Next Business Day on-site service • 3 years ProSupport with Next Business Day on-site service • 4 years ProSupport with Next Business Day on-site service • 5 years ProSupport with Next Business Day on-site service • 1 years ProSupport Plus for Client with Next Business Day on-site service • 2 years ProSupport Plus for Client with Next Business Day on-site service • 3 years ProSupport Plus for Client with Next Business Day on-site service • 4 years ProSupport Plus for Client with Next Business Day on-site service • 5 years ProSupport Plus for Client with Next Business Day on-site service
