Dell Precision 5680 Mobile Workstation

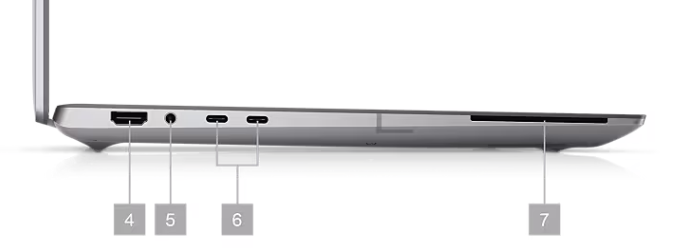

Left View:

1. Full-SD 2. USB-C port 3. Lock slot
4. HDMI 5. Headphone/mic input
6. (2) Thunderbolt 4 7. Optional smart card reader

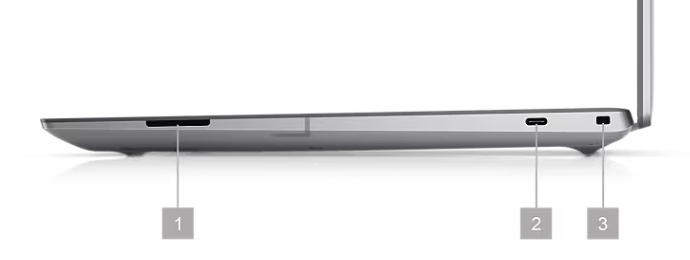

Right View:

Sustainably-made
  • Responsible packaging: Precision Mobile Workstations ship in packaging made from 100% recycled or renewable materials and is 100% recyclable.
  • Recycle your old device: Help us in our mission to make our products with at least 50% recycled or renewable content. Send your e-waste (any brand) to us for recycling.
Dell Optimizer
  • Intelligence built around you: Automatically personalise and boost the performance of your system and its entire ecosystem with Dell Optimizer, an AI-based optimization software that learns and responds to the way you work.
  • Personalised Performance: Intelligence and machine learning elevate productivity by automatically personalizing performance features across your entire ecosystem, making them the Dell’s most intelligent PCs.
  • Intelligent Collaboration: Get the Dell’s most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features – all in one software.
  • Safe, secure and manageable: We ensure optimization and data collection follows a stringent process to keep your information safe. Any data we do gather is analysed locally on your system to improve your personal PC experience.
Processor Options : • 13th Gen Intel Core i5-13600H vPro, 18 MB cache, 12 cores, 24 threads, 2.70 GHz to 4.50 GHz, 45W • 13th Gen Intel Core i7-13700H non-vPro Essentials, 24 MB cache, 14 cores, 28 threads, 3.70 GHz to 5.0 GHz, 45W • 13th Gen Intel Core i7-13800H vPro, 24 MB cache, 14 cores, 28 threads, 4.0 GHz to 5.20 GHz, 45W • 13th Gen Intel Core i9-13900H vPro, 24 MB cache, 14 cores, 28 threads, 4.10 GHz to 5.40 GHz, 45W
Operating System : • Windows 11 Home, 64-bit • Windows 11 Pro, 64-bit • Win 11 Pro with Win 10 downgrade option • Ubuntu 22.04 • RHEL
Memory Options : • 16GB, 6400MT/s, LPDDR5x, Soldered Memory • 32GB, 6000MT/s, LPDDR5x, Soldered Memory • 64 GB, 6000 MT/s, LPDDR5x, Soldered Memory
Storage Options : • M.2 2230, 256GB, PCIe NVMe Gen4 x 4, Class 35 SSD • M.2 2280, 512 GB, PCIe NVMe Gen4 x 4, Class 40 SSD • M.2 2280, 1TB, PCIe NVMe Gen4 x 4, Class 40 SSD • M.2 2280, 2TB, PCIe NVMe Gen4 x 4, Class 40 SSD • M.2 2280, 4TB, PCIe NVMe Gen4 x 4, Class 40 SSD • M.2 2280, 512GB, PCIe NVMe Gen4 x 4, Class 40 SSD, self-encrypting drive • M.2 2280, 1TB, PCIe NVMe Gen4 x 4, Class 40 SSD, self-encrypting drive
Graphics : • Intel Integrated Graphics UMA • NVIDIA RTX A1000, DDR6, 6GB memory • NVIDIA RTX 2000, Ada Generation DDR6, 8GB memory • NVIDIA RTX 3500 Ada Generation DDR6, 12GB memory • NVIDIA RTX 4000 Ada Generation DDR6, 12 GB memory NVIDIA • RTX 5000 Ada Generation DDR6, 16 GB memory NVIDIA GeForce • RTX 4090 GPU 16 GB
Integrated Video Controller : Intel Iris Xe Graphics, USB Type-C port with DisplayPort Alt mode and Thunderbolt 4, Shared system memory, 13th Generation Intel Core i5/i7/i9
Media-card Reader : • Secure Digital (SD) • Secure Digital High Capacity (SDHC) • Secure Digital Extended Capacity (SDXC)
Fingerprint Reader : Sensor resolution: 500DPI
Dimensions & Weight : • Front: 20.5mm, (.80in) without rubber foot, 26.17 with foot Rear: 22.17mm, (0.87in) without rubber foot, 26.17mm with foot Width: 353.68mm, (13.92in) Depth: 240.33mm, (9.46 in) Weight (minimum): 1.91Kg, (4.20lbs) [with 4-cell battery]
Touchpad : • Resolution: Horizontal 1770, Vertical 1039 • Dimensions: Horizontal 150.9mm, Vertical 90mm
Audio : Dual array microphones, 4 x speakers (grade A)
Wireless : Intel AX211 WiFi 6E and Bluetooth 5.3 wireless card
Battery Options : 4-cell (66Whr) or 6-cell (99.5Whr) Lithium-Ion polymer battery with Express Charge Boost, Long life cycle battery option
Display Options : • 16” FHD+ non-touch, 1920 x 1200, WVA, 60Hz, 500 nits WLED, Low BL w/ IR Cam, DCI-P3 100% • 16” OLED touch, 3840 x 2400, 60Hz, WVA, 400 nits WLED, Adobe 100% min and DCI-P3 100% type, 99% min w/ IR Cam
Keyboard : Spill resistant, backlit keyboard
Power Options : • 100W UMA • Height: 26mm, Width: 60mm, Depth: 122mm • Input voltage (maximum): 240VAC
