Dell Precision 5860 Tower Workstation

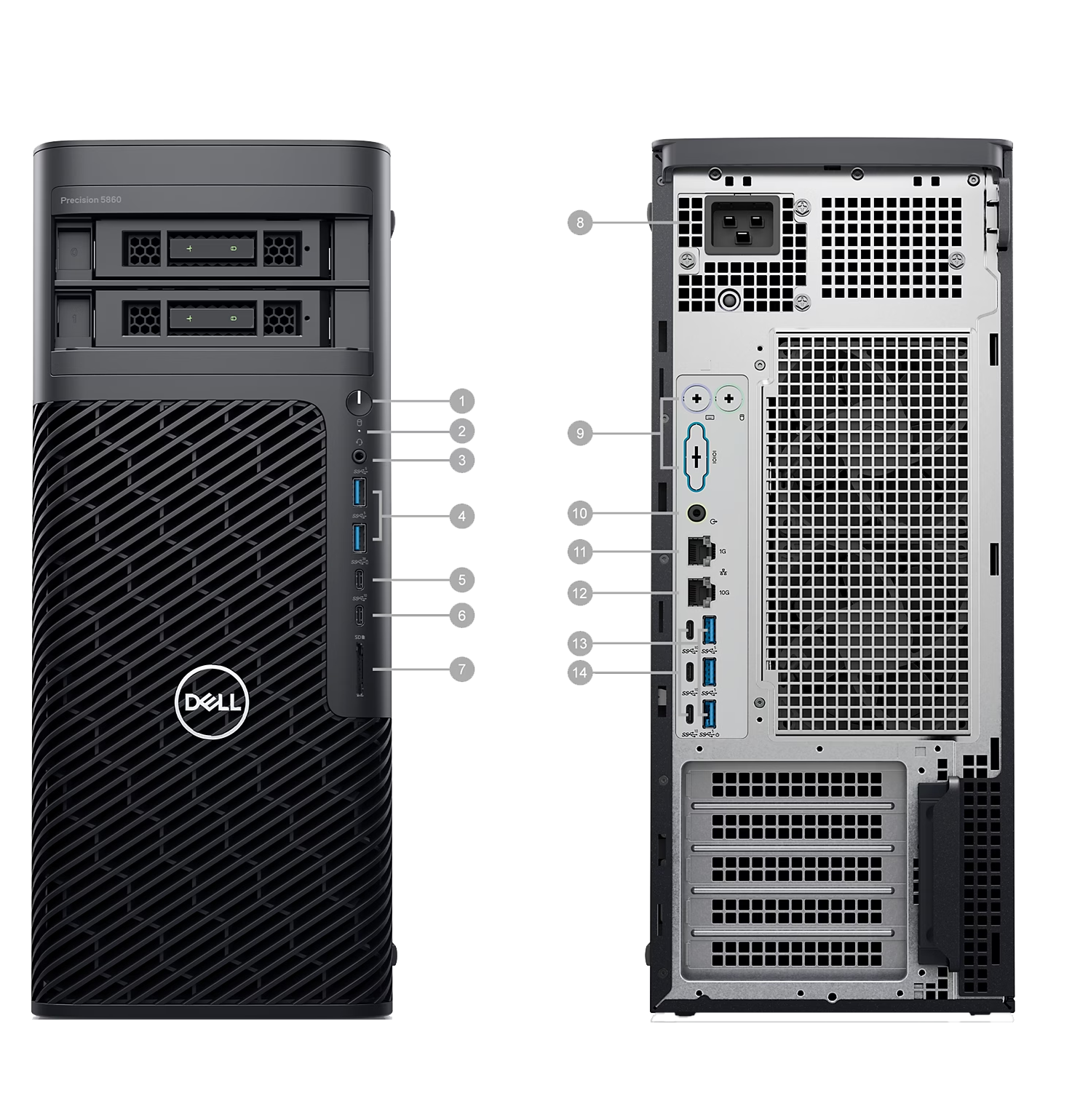

Ports & Slots :
| 1. | Power switch | 2. | HDD LED |
| 3. | Universal Audio Jack | 4. | (2) USB 3.2 Gen1 (5Gb/s) Type-A |
| 5. | USB 3.2 Gen 2 (10Gb/s) Type-C | 6. | USB 3.2 Gen 2 (10Gb/s) Type-C |
| 7. | SD card reader | 8. | Power outlet |
| 9. | Serial and PS2 (optional) | 10 | Line out |
| 11. | RJ45 (1Gb) | 12. | RJ45 (10Gb) |
| 13. | (3) USB 3.2 Gen 1 (5Gb/s) Type-A | 14. | (3) USB3.2 Gen 2 (10Gb/s) Type-C |

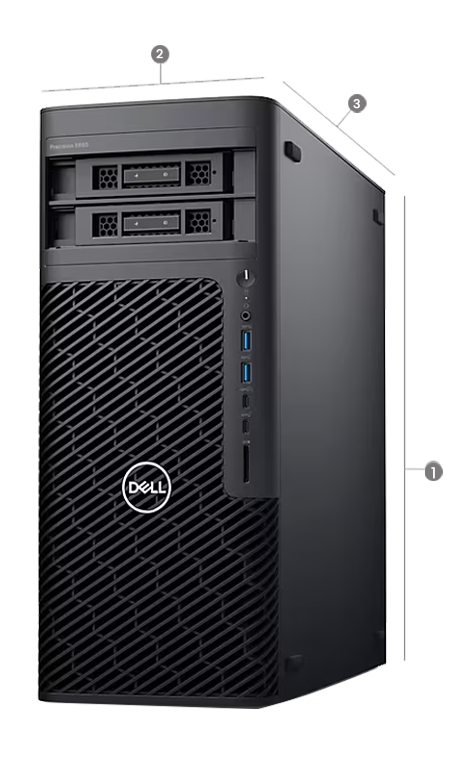

Dimensions & Weight :
| 1. | Height: 414.00 mm (16.29 in.) / 417.90 mm (16.45 in.) with rubber-foot protruding | Weight: Maximum: 21.70kg (47.80lb) Minimum: 14.40kg (31.70lb) | |
| 2. | Width: 172.60 mm (6.79 in.) / 176.50 mm (6.94 in.) with rubber-foot protruding | 3. | Depth: 429.60 mm (16.90 in.) / 452.10 mm (17.79 in.) with lock-structure protruding |
Here are some of the key features of the Dell Precision 5860 Tower Workstation:
- • Intel Xeon W-3000 series processors
- • Up to 8TB of PCIe NVMe storage
- • NVIDIA RTX A-series or NVIDIA T-series professional graphics
- • Up to 128GB of DDR5 memory
- • Tool-less chassis design for easy serviceability
- • Multiple configuration options to meet the needs of different users
Dell Precision 5860 Tower Workstation
Dell Optimizer for Precision Intelligence built around you:Automatically personalize and boost the performance of your Precision and its entire ecosystem with Dell Optimizer, an AI-based optimization software that learns and responds to the way you work.
Personalized performance with the world’s most intelligent PCs:
Intelligence and machine learning elevate productivity by automating performance features beyond your PC, across your entire ecosystem.
Intelligent Collaboration:
Get the world’s most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features – all in one software.
Safe, secure and manageable: With Dell Optimizer, AI and machine learning gather and analyze data locally on the system–only event data and service heartbeat are sent to help Dell understand if the app is working appropriately. Optimization and data collection follow a stringent process to ensure your privacy and security-using data to improve your PC experience continually. No personal data is sent and used without your explicit consent.
Analytics:
Generate end-user reports and analyze your system for personalized insights.
| Model Number : | Precision 5860 Tower |
| Processor Options : | 13th gen i3-13100, 12MB, 4 cores, 8 threads, 3.4 GHz to 4.5 GHz, 60W 13th gen i5-13400, 20MB, 10 cores, 16 threads, 1.8 GHz to 4.6 GHz, 65W 13th gen i5-13500 vPro, 24MB, 14 cores, 20 threads, 1.8 GHz to 4.8 GHz, 65W 13th gen i5-13600 vPro, 24MB, 14 cores, 20 threads, 2.0 GHz to 5.0 GHz, 65W 13th gen i5-13700 vPro, 30MB, 16 cores, 24 threads, 1.5 GHz to 5.2 GHz, 65W 13th gen i5-13900 vPro, 36MB, 24 cores, 32 threads, 1.5 GHz to 5.6 GHz, 65W |
| Operating System : | Windows 11 Pro Downgrade (Windows 10 Pro Image-factory installed) Windows 10 CMIT Government Edition, 64-bit (China only) Windows 11 Pro for Workstations Windows 10 Pro for Workstations Downgrade Ubuntu 22.04 LTS, 64-bit Red Hat Enterprise Linux 8.6 |
| Memory Options : | 8GB, 1 x 8GB, DDR5, 4800MHz, ECC, Single-channel 16GB, 1 x 16GB, DDR5, 4800MHz, ECC, Single-channel 16GB, 2 x 8GB, DDR5, 4800MHz, ECC, Dual-channel 32GB, 1 x 32GB, DDR5, 4800MHz, ECC, Single-channel 32GB, 2 x 16GB, DDR5, 4800MHz, ECC, Dual-channel 64GB, 2 x 32GB, DDR5, 4800MHz, ECC, Dual-channel 8GB, 1 x 8GB, DDR5, 4800MHz, Non-ECC, Single-channel 16GB, 1 x 16GB, DDR5, 4800MHz, Non-ECC, Single-channel 16GB, 2 x 8GB, DDR5, 4800MHz, Non-ECC, Dual-channel 32GB, 1 x 32GB, DDR5, 4800MHz, Non-ECC, Single-channel 32GB, 2 x 16GB, DDR5, 4800MHz, Non-ECC, Dual-channel 64GB, 2 x 32GB, DDR5, 4800MHz, Non-ECC, Dual-channel |
| Storage : | 3.5-inch, 1TB, 7200 RPM, SATA, HDD 3.5-inch, 2TB, 7200 RPM, SATA, Enterprise HDD 3.5-inch, 4TB, 7200 RPM, SATA, Enterprise HDD 3.5-inch, 8TB, 7200 RPM, SATA, Enterprise HDD 3.5-inch, 12TB, 7200RPM, Enterprise HDD 2.5-inch, 500GB, 7200 RPM, SATA, HDD 2.5-inch, 600GB, 15K RPM, SAS Enterprise HDD 2.5-inch, 1.2TB, 10K RPM, SAS Enterprise HDD 2.5-inch, 2.4TB, 10K RPM, SAS Enterprise HDD 2.5-inch, 1.92TB, SATA MU SSD M.2 2230, 256GB, PCIe NVMe Gen4 x4, SSD, Class 35 M.2 2280, 512GB, PCIe NVMe Gen4 x4, SSD, Class 40 M.2 2280, 1TB, PCIe NVMe Gen4 x4, SSD, Class 40 M.2 2280, 2TB, PCIe NVMe Gen4 x4, SSD, Class 40 M.2 2280, 4TB, PCIe NVMe Gen4 x4, SSD, Class 40 M.2 2280, 512GB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS M.2 2280, 1TB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS |
| Video Card : | Intel UHD Graphics 730 with 13th Generation Intel Core i3 processor Intel UHD Graphics 770 with 13th Generation Intel Core i5/i7/i9 processors Intel Arc Pro A40, 6GB GDDR6 NVIDIA T400, 4 GB GDDR6, low profile NVIDIA T1000, 4 or 8 GB GDDR6, low profile NVIDIA RTX A2000, 8 or 12 GB GDDR6, low profile AMD Radeon Pro WX3200, 4 GB GDDR6, low profile AMD Radeon Pro W6400, 4GB GDDR6 |
| Accidental Damage : | 3-year Accidental Damage Service 4-year Accidental Damage Service 5-year Accidental Damage Service |
| Graphics : | NVIDIA: NVIDIA RTX A6000, 48GB GDDR6 NVIDIA RTX A5500, 24GB GDDR6 NVIDIA RTX A4500, 20GB GDDR6 NVIDIA RTX A4000, 16GB GDDR6 NVIDIA RTX A2000, 12GB GDDR6 NVIDIA T1000, 8GB GDDR6 NVIDIA T400, 4GB GDDR6 NVIDIA GV100, 32GB HBM2 AMD: AMD Radeon Pro W6800, 16GB GDDR6 AMD Radeon Pro W6600, 8GB GDDR6 Post product launch AMD Radeon Pro W6300, 4GB GDDR6 AMD Radeon Pro W6400, 4GB GDDR6 |
| Security Software : | McAfee Small Business Security 30-day free trial McAfee Small Business Security 12-month subscription McAfee Small Business Security 36-month subscription Dell Encryption Personal Dell Encryption Enterprise |
| Warranty : | 3-year Basic warranty with hardware service with on-site/in-home service after remote diagnosis 4-year Basic warranty with hardware service with on-site/in-home service after remote diagnosis 5-year Basic warranty with hardware service with on-site/in-home service after remote diagnosis 3-year ProSupport with Next Business Day on-site service 4-year ProSupport with Next Business Day on-site service 5-year ProSupport with Next Business Day on-site service 3-year ProSupport Plus for Client with Next Business Day on-site service 4-year ProSupport Plus for Client with Next Business Day on-site service 5-year ProSupport Plus for Client with Next Business Day on-site service |
| Ports : | Front: USB 3.2 Gen 1 ports USB 3.2 Gen 2 Type-C port with PowerShare USB 3.2 Gen 2 Type-C port Universal audio port SD-card slot Rear: USB 3.2 Gen 2 Type-C ports USB 3.2 Gen 1 ports USB 3.2 Gen 1 port with Smart Power On RJ45 Ethernet port, 1GBE RJ45 Ethernet port, 10GBE Line-out port Serial port (optional) PS2 ports (optional) |
| Slots : | Full-height Gen5 PCIe x 16 slot Full-height Gen4 PCIe x 16 slot Full-height Gen4 PCIe x 8 slot open-ended Full-height Gen4 PCIe x 8 slot (x 4 electrical) open-ended (2) M.2 2230/2280 slots for PCIe NVMe Gen4 SSD SATA slots for 2.5/3.5-inch HDD/SSD Externally facing storage flex bays |
