HPE ProLiant DL360 Gen10 Server
Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain and 27% increase in cores, along with 2933 MT/s HPE DDR4 Smart Memory supporting up to 3.0 TB with an increase in performance of up to 82%. With the added performance that HPE Persistent Memory, HPE NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.

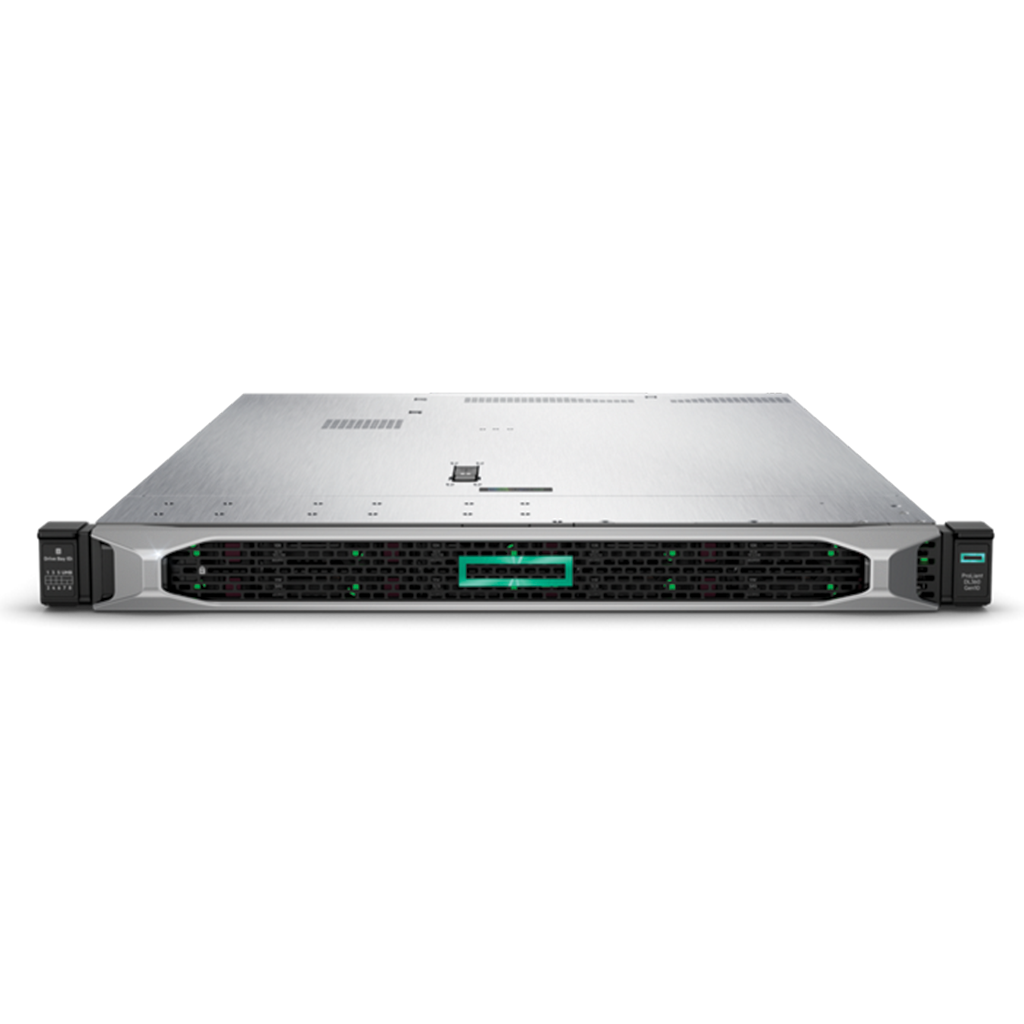

8SFF Front View –8SFF + 2SFF-Universal Media Bay option shown
1. | Drive support label | 2. | Quick removal access panel |
3. | Serial no. label pull tab | 4. | Universal Media Bay: +2 SFF SAS/SATA shown Option: +2 SFF NVMe drives Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit Option: + 2 Dual uFF (4 x M.2 cartridges) Option: Display port + USB 2.0 port Kit + Blank |
5. | Power On/Standby button and system power LED | 6. | Health LED | 7. | NIC status LED |
8. | UID button/LED | 9. | USB 3.0 port | 10. | iLO Service Port |
1. | Drive support label | 2. | Quick removal access panel |
3. | Serial no. label pull tab | 4. | Power On/Standby button and system power LED |
Premium 10SFF NVMe Front View :
5. | Health LED | 6. | NIC status LED | 7. | NIC status LED |
8. | USB 3.0 port | 9. | iLO Service Port | 10. | Max up to 10 NVMe drives (PCIe direct attached) or 8 SAS/SATA/NVMe+ 2 NVMe |

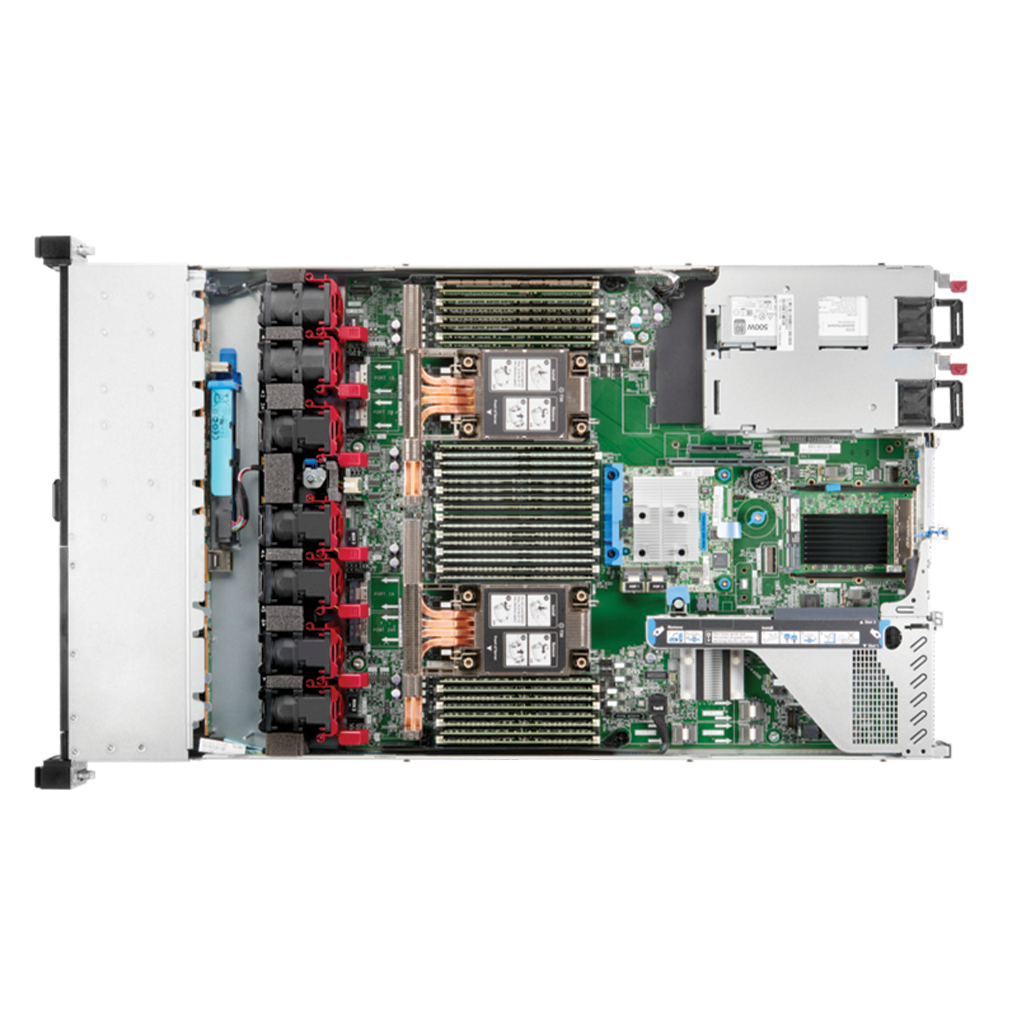

Internal View 8 SFF chassis – with optional Flex LOM, Smart array shown :
1. | Fan cage shown with 5 Performance Hot-swappable fans | 2. | Optional HPE Smart Storage Battery |
3. | Hard drive Backplane Power Connector | 4. | Chassis intrusion detection connector |
5. | Processor (heat sink shown) | 6. | DDR4 DIMM slots. Shown fully populated in 16 slots | 7. | Connection for second (optional) riser |
8. | Hot Plug redundant HPE Flexible Slot Power supplies | 9. | Optional HPE Flexible Smart Array Controller (P408i-a shown) | 10. | Serial Port Connector |
11. | (Under) Optional Flexible LOM slot | 12. | Primary PCIe riser, standard | 13. | Internal USB 3.0 connector |
14. | MicroSD card slot |
1. | For 8 SFF or 4 LFF - Standard single rotor hot plug fans 11 CPU – 5 standard fans 2 CPUs – 7 standard fans Option: High Performance fans | 2. | Option: HPE Smart Hybrid Capacitor or HPE Smart Storage Battery |
3. | Up to 2 processors (shown with standard heat sinks) | 4. | MicroSD card slot |
5. | Option: Chassis Intrusion Detection | 6. | Hard Drive backplane power connector |
Internal View-Standard for all DL360 Gen10 :
7. | Dual internal USB 3.0 connector | 8. | Smart Array Controller (Type -a shown) | 9. | Up to 2 Power Supplies for redundant power |
10. | Secondary (CPU2) PCIe 3.0 riser Option: Full Height x16 (Lose slot 2 on Primary riser) | 11. | System Battery | 12. | Optional: TPM 2.0 |
13. | Primary (CPU1) PCIe 3.0 riser (Standard: GPU power connector + 1 x 16 and 1 x 8) Option: 2 SATA M.2 + 2x 16 Option: (8 SFF only): 2 x 4 NVMe + 1 x 16 and 1 x 8 | 14. | Option: Front Display port / USB 2.0 | 15. | Flexible LOM (supports various NICs up to 25GbE) |
16. | x4 SATA port 1 | 17. | x4 SATA port 2 | 18. | x2 SATA port 3 |
19. | x1 SATA port 4 | 20. | Front Power USB 3.0 connector | 21. | Optical/SATA port 5 |
22. | DDR4 DIMM slots (Fully populated 24 DIMMs shown) |

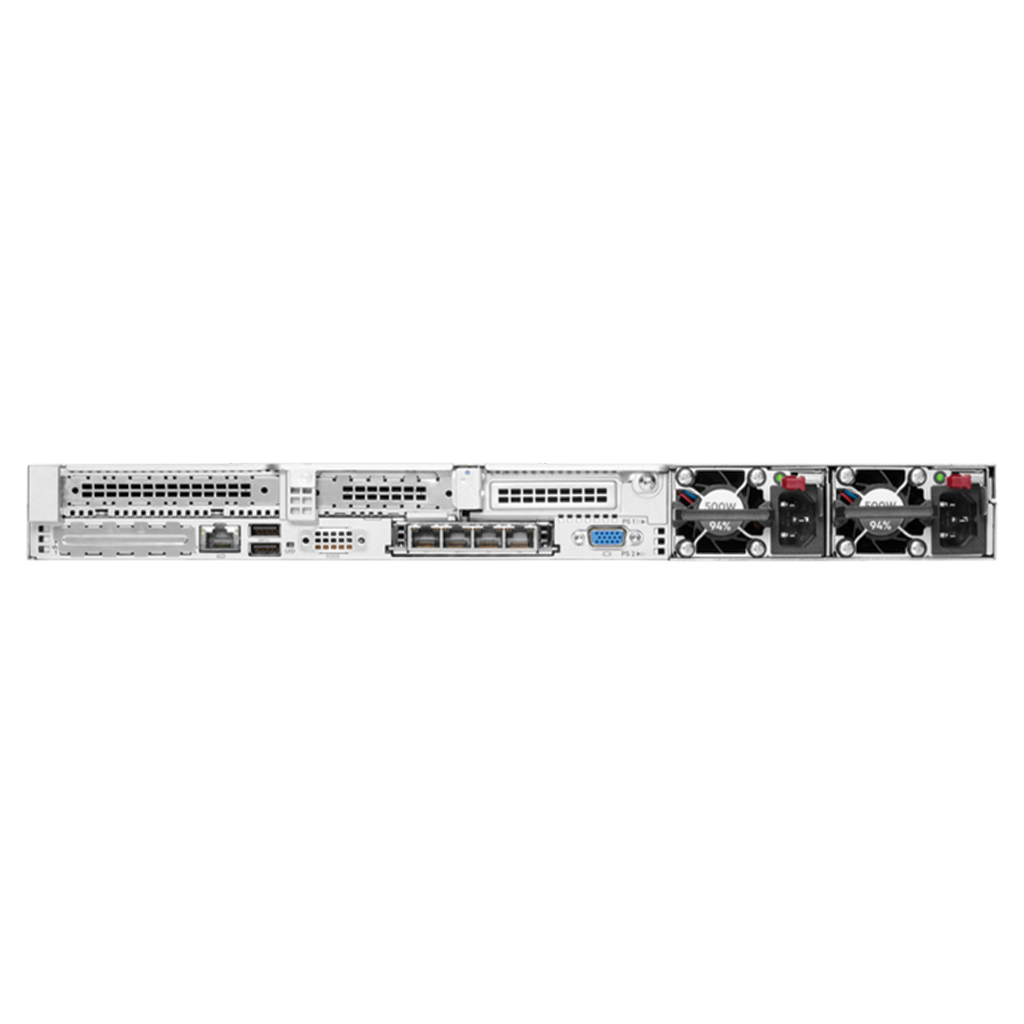

Rear View –Standard for all DL360 Gen10
1. | Slot 1 PCIe 3.0 Option: Rear Drive +1 SFF or 1 uFF SSD (2x M.2 cartridges) | 2. | Slot 2 PCIe 3.0 |
3. | Option: Slot 3 PCIe 3.0 (Requires 2nd processor) | 4. | Power Supply 2 |
5. | Power Supply 1 | 6. | VGA port | 7. | Embedded 4x 1GbE Adapter(if equipped) |
8. | iLO Management Port | 9. | Option: Serial Port | 10. | USB 3.0 Ports |
11. | Option: Flexible LOM (Shown: 4 x 1GbE) |
HPE ProLiant DL360 Gen10 Server
What’s New
- • HPE SAS 12G Read Intensive SAS SSDs (960GB/1.92TB/3.84TB/7.68TB/15.3TB)
- • HPE SAS 12G Mixed Use SAS SSDs (800GB/1.6TB/3.2TB/6.4TB)
- • HPE SAS 12G Write Intensive SAS SSDs (400GB/800GB/1.6TB)
- • HPE 18TB SAS 7.2K LFF HDD
- • HPE 18TB SATA 7.2K LFF HDD
- • Four additional Pre-Configured models (P40637-xx1, P40638-xx1, P36183-xx1 and P40636-xx1)
- • Support for 32GB Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory
Industry-leading Performance with Versatile Compute
HPE ProLiant DL360 Gen10 server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2933 MT/s HPE DDR4 Smart Memory.
Supporting the second generation Intel Xeon Scalable processor family with up to a 11% per-core performance gain4 over first generation and with memory speeds up to 2933 MT/s. HPE Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.
Achieve greater capacity with flexible drive configurations with up to 10 SFF and four LFF drives along with an option to support up to 10 NVMe PCIe SSDs delivering enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics. With support for up to 12 NVDIMMs per chassis and 2X capacity of first-generation HPE NVDIMMs, HPE ProLiant DL360 Gen10 server delivers up to 192 GB per system.
Innovative Design for Flexibility and Choice
The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uff and M.2 storage options. Embedded 4 x 1GbE (select models) or HPE Flexible LOM and PCIe standup 1GbE, 10GbE, 25GbE, or 100GbE adapters provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs. Unmatched expandability is packed in a dense 1U rack design with up to three PCIe 3.0 slots.
Security Innovations
HPE iLO 5 enables the world’s most secure industry standard servers with HPE silicon root of trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
New features include Server Configuration Lock that ensures secure transit and locks server hardware configuration, iLO Security Dashboard helps detect and address possible security vulnerabilities and Workload Performance Advisor provides server tuning recommendations for better server performance.
With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.
Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.
Industry-Leading Serviceability and Deployment
HPE ProLiant DL360 Gen10 server comes with a complete set of services offered by HPE Point next, delivering confidence, reducing risk, and helping customers realize agility and stability. Services from HPE Point next simplifies the stages of the IT journey.
Advisory and Transformation Services professionals understand customer challenges and design an enhanced solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
Services provided under Operational Services include – HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage. HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Processor Name : | Intel |
Processor family : | Intel Xeon Scalable 8100/8200 series - Intel Xeon Scalable 3100/3200 series |
Number of processors : | 2, maximum depending on model |
Processor core available : | 4 to 28 core, depending on model |
Processor cache : | 8.25 - 38.50 MB L3, depending on processor |
Processor speed : | 3.9 GHz, maximum depending on processor |
Expansion slots : | 3 |
Maximum memory : | 3.0 TB with 128 GB DDR4, 6.0 TB with HPE 512GB 2666 Persistent Memory Kit |
Memory, standard : | 3.0 TB (24 x 128 GB) LRDIMM, 6.0 TB (12 x 512 GB) HPE Persistent Memory |
Memory slots : | 24 DIMM slots |
Memory type : | HPE DDR4 Smart Memory and Intel Optane persistent memory 100 series for HPE, depending on model |
System fan features : | Hot-plug redundant standard |
Network controller : | Embedded 4 x 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-upcards, depending on model |
Storage controller : | HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model |
Product Dimensions (metric) : | SFF Chassis: 4.29 x 43.46 x 70.7 cm, LFF Chassis: 4.29 x 43.46 x 74.98 cm |
Weight : | 13.04 kg minimum, 16.78 kg maximum |
Infrastructure management : | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses) |
Warranty : | 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. |
Drive supported : | 4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 NVMe, 10 SFF SAS/SATA, 10 SFF NVMe, 1 SFF or 1 Dual UFFrear drive optional depending on model |
