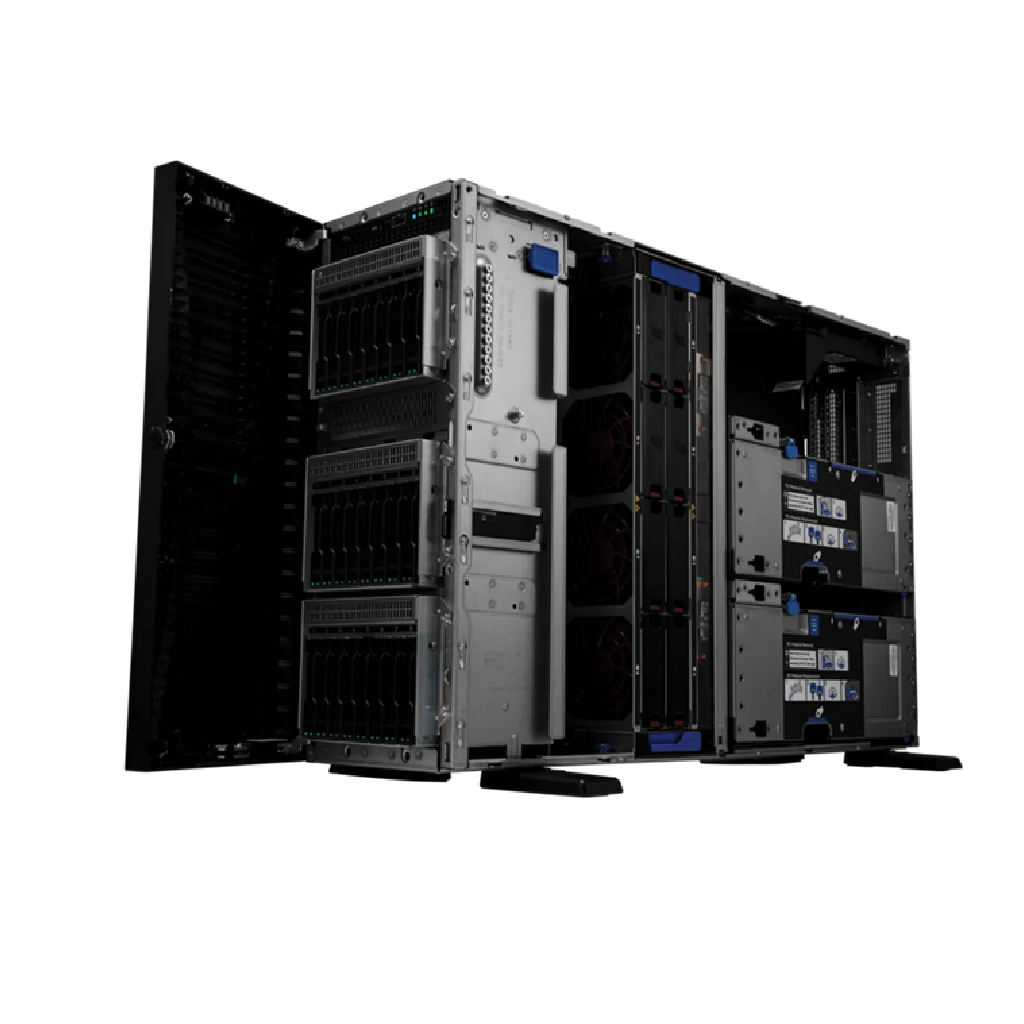

HPE ProLiant ML350 Gen10 Tower Server
Driving a wide range of workloads with a flexible, shorter and rackable chassis design that can fit in different physical environments, the secure 2P HPE ProLiant ML350 Gen10 Server delivers the ideal set of performance and expandability for changing business needs making it the choice for growing SMBs, remote/branch offices of large enterprises and data centers. Choose this 2P tower that grows with you in the digital economy.

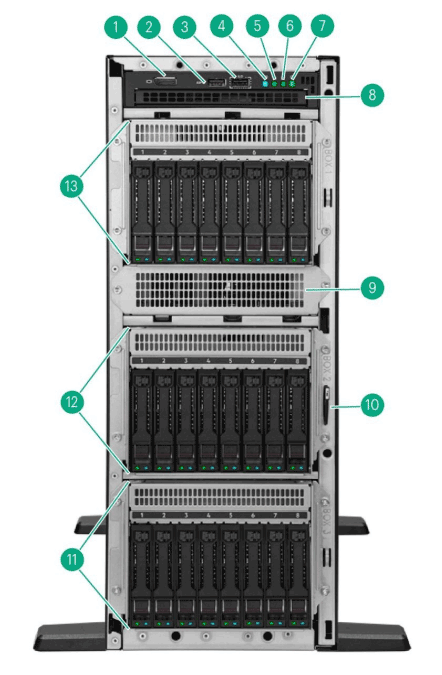

Front View – SFF chassis with optional Gen10 8SFF HDD Cage Kits shown (Rack mode)
1. | Power On/Stand-by button and System Power LED | 2. | Box1: optional HDD Drive Cage Bay for additional 8 SFF or 4 LFF drives support, or upgradeable to 2 HH media devices + 1 slim-line DVD. |
3. | Serial number/iLO information pull tab | 4. | Box2: optional HDD Drive Cage Bay for additional 8 SFF or 4LFF drives support, or upgradeable to 8 SFF NVMe Express Bay |
5. | Box3: default with one 8 SFF HDD Drive Cage | 6. | iLO Service Port | 7. | USB 3.0 port x 2 |
8. | UID Button/LED | 9. | NIC Status LED | 10. | System Health LED |

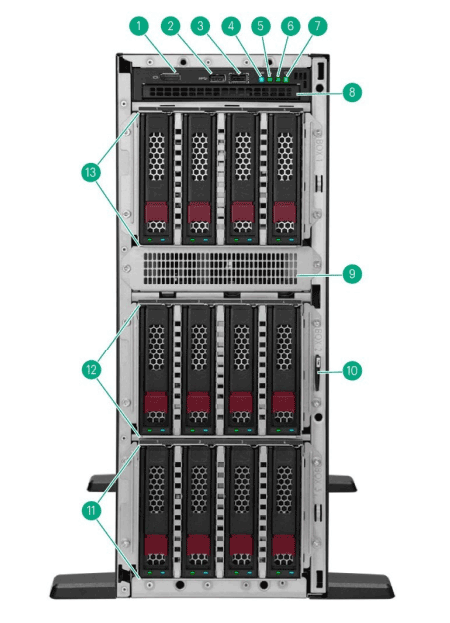

1. | iLO Service Port | 2. | USB 3.0 port x 2 |
3. | UID Button/LED | 4. | NIC Status LED |
5. | System Health LED | 6. | Power On/Stand-by button and System Power LED |
7. | Box1: optional HDD Drive Cage Bay for additional 4 LFF or 8SFF drives support, or upgradeable to 2 HH media devices + 1 slim-line DVD | 8. | Box2: optional HDD Drive Cage Bay for additional 4 LFF or 8SFF drives support |
9. | Box3: default with one 4 LFF HDD Drive Cage | 10. | ower feet (foldable at servicing) |
11. | Serial number/iLO information pull tab |
4 (+2) SFF Front View

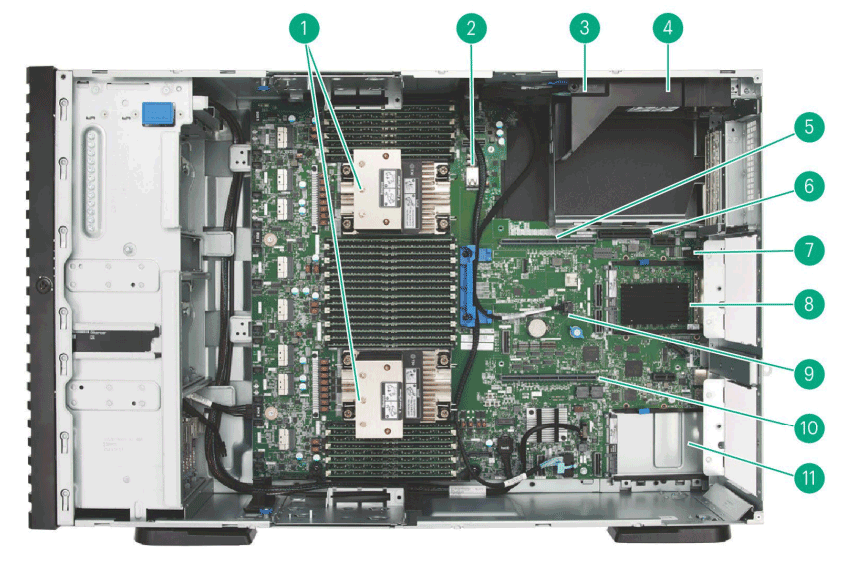

Internal View – with optional 2ndCPU, Smart Array Modular Controller and Redundant Fan Kit shown
1. | Redundant fan cage kit with addional (4) system fans are shown, supporting 2P and/or advanced cooling requirements. | 2. | CPU Socket 2 with the 2ndprocessor and heatsink, (depending on server model, the 2nd processor can be Optional) and 12 DDR4 DIMM slots for RDIMM or LRDIMM |
3. | HPE Smart Array Modular controller (AROC/Depending on server model, this can be Optional) | 4. | HPE Smart Storage Battery(Optional depending on model) |
5. | MicroSD Slot x1 | 6. | CPU Socket 1 with one processor and heatsink, and 12 DDR4 DIMM slots for RDIMM or LRDIMM | 7. | PCIe Slots (Slot 5-8, coming from CPU2) (requires Optional 2nd processor): Slot 5 and 7 can support Optional GPU |
8. | System fans: (2) fans along with the air baffle (not shown) are standard for basic cooling | 9. | (Under) Hot Plug redundant HPE Flexible Slot Power supplies | 10. | Connection for second (optional) riser (Requires second CPU) |
11. | Internal USB port x2 (USB3.0 x 1 and USB2.0 x 1) |
1. | HPE Flexible Slot 2 (Optional –empty with power supply blank shown) | 2. | HPE Flexible Slot 1 Power Supply |
3. | Power supply Power LED | 4. | Power supply handle (with red touch-point) |
5. | Power supply Power connection | 6. | Display Port |
7. | VGA Port | 8. | Serial Port |
9. | Dedicated iLO Management Port (RJ45) | 10. | Embedded 4 x 1GbE Network ports |
11. | USB 3.0 port x 2 | 12. | Unit ID LED |
13. | Tower feet (foldable at servicing) | 14. | PCI Slots (Slots 1-4) –Slot 1 and 3 can support Optional GPU |

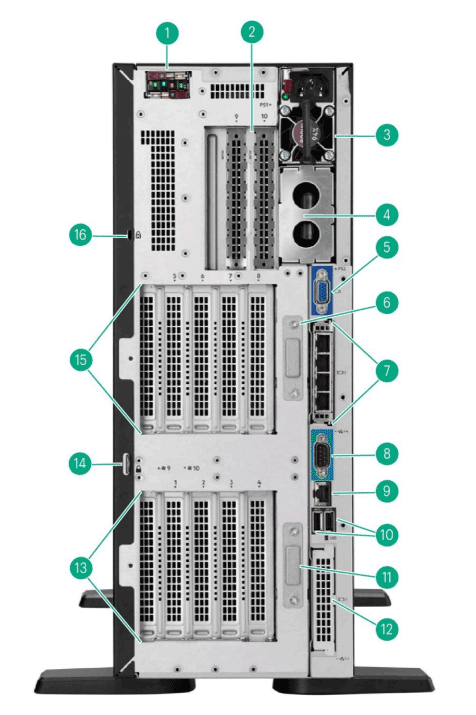

Rear View – With HPE Flex Slot RPS shown.
15. | Padlock eye | 16. | Kensington security slot | 17. | PCI Slots (Slots 5-8) (requires Optional second processor) –Slot 5 and 7 can support Optional GPU |
HPE ProLiant ML350 Tower Server
What’s New
- • HPE ProLiant ML350 Gen10 Tower Server supports the additional 2nd generation Intel Xeon Scalable Processor offerings delivering exceptional customer value with increased performance and industry-leading frequency.
- • ML350 Supports mixed LFF and SFF drive cages within the same server for tiered storage, offering the flexibility to mix drive types for cost and capacity size considerations.
- • Available regionally, SMB offers that are aggressively priced.
Perform with Unmatched Versatility
HPE ProLiant ML350 Gen10 server supports up to two Intel Xeon Scalable processors, starting from Bronze through Platinum, 4 cores expanding up to 28 core processors offering unparalleled performance. Up to 24 DIMM slots to support the 2933 MT/s or 2600 MT/s HPE DDR4 SmartMemory, reducing data loss and downtime with the HPE Gen10 technology licensed Fast Fault Tolerance feature while increasing workload performance and power efficiency.
It supports a wide range of solutions from Azure to Docker, along with the traditional operating systems. GPU expansion supports up to four units to accelerate performance in VDI applications and machine learning for financial services, surveillance and security, educational and scientific research, as well as retail and medical imaging. The new addition of NVIDIA Tesla T4 and NVIDIA Quadro RTX8000/6000/4000 GPU option support, transforms into an even more powerful AI Tower server with high-speed GPU connection, ray-tracing and AI.
Expand When Your Business Needs Grow
HPE ProLiant ML350 Gen10 Tower Server delivers expandability and flexibility with mixed LFF and SFF drive cages within the same server. Supporting 8 to 24 SFF or 16 SFF when mixed with 8 NVMe PCIe solid-state drives, 4 to 12 LFF hot plug or non-hot plug drive protecting your IT investment in a hybrid environment. Large expansion capacity with eight PCIe slots, six USB ports, 5U rack conversion, and power supply options. Embedded 4x1GbE and the choice of PCIe standup 1GbE, 10GbE, 25GbE or 100GbE adapters and Infinite band cards provide you the flexibility of networking bandwidth and fabric so you can scale and adapt to different needs as your business grows.
Security Innovations
HPE Integrated Lights Out 5 (iLO 5) enables the world’s most secure industry-standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
iLO 5 security features include Server Configuration Lock to ensure secure transit, iLO Security Dashboard helps detect and address possible security vulnerabilities in the server setup. Workload Performance Advisor provides server tuning recommendations for better server performance.
With Runtime Firmware Verification, the ML350 server firmware is checked every 24 hours, verifying the validity and credibility of essential system firmware. Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code. Additional security options are available with the Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server. HPE Info-Sight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Industry Leading Services and Ease of Deployment
HPE ProLiant ML350 Gen10 server comes with a complete set of HPE Point next services, delivering confidence, reducing risk, and helping customers realize agility and stability. Services from HPE Point next simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an effective solution. Professional Services enable rapid deployment of solutions, and Operational Services provide ongoing support. Services provided under Operational Services include HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage. HPE IT investment solutions help you transform in to a digital business with IT economics that aligns with your business goals.
Reliability you can count on
ThinkPad workstation laptops are tested against 12 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from zero-gravity to spills and drops, you can trust these rugged laptops to handle whatever life throws your way.
Processor type : | Intel Xeon Scalable processors, 1st and 2nd generations |
Processor name : | Intel Xeon Scalable processors, 1st or 2nd generation |
Processor family : | 1st generation: Intel Xeon Scalable 8100 series, Intel Xeon Scalable 6100 series, Intel Xeon Scalable 5100 series, Intel Xeon Scalable 4100 series, Intel Xeon Scalable 3100 series, 2nd generation: Intel Xeon Scalable 8200 series, Intel Xeon Scalable 6200 series, Intel Xeon Scalable 5200 series, Intel Xeon Scalable 4200 series, Intel Xeon Scalable 3200 series |
Processor number : | 1 or 2 |
Processor core available : | 28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 6 or 8 or 4, depending on model |
Processor cache : | 38.50 MB L3 - 8.25 MB L3, depending on model |
Processor speed : | 3.9 GHz, maximum depending on processor |
Power supply type : | HPE Flexible Slot Redundant Power Supply modules 500W / 800W / 1600W, depending on model SKU, or HPE Standard 500W Non-Hot-Plug/non-RPS Power Supply (ordering limited to non-EU/EMEA countries/regions) |
Expansion slots : | 8-slots (x 16, x 8, x 16, x 8, x 16, x 8, x 16, x 8) as standard in 2P model. For detail reference QuickSpecs. |
Maximum memory : | 3.0 TB with 128 GB DDR4 DIMM |
Memory standard : | 32 GB (1 x 32 GB) RDIMM or depending on model |
Memory slots : | 24 DIMM slots |
Memory type : | HPE DDR4 SmartMemory |
Memory protection features : | Advanced ECC Memory Online Spare Mode Memory Lock Step Mode |
Included hard drives : | None Ship Standard |
Optical drive type : | Optional DVD-ROM or DVD-RW. Optional via Slim-line ODD Bay Kit. Optional external support is available too. Optional Half-Height RDX or Tape, up to 2. Optional via Media Drive Support Kit. |
System fan features : | Depending on model SKU. Standard 2 fans, none-hot-plug. Optional 4 additional fans, hot-plug and N+1 redundancy. |
Network controller : | HPE Ethernet 1Gb 4-port 369i Adapter |
Storage Controller : | 1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a SR Gen10 and/or 1 HPE Smart ArrayE208i-a Gen10, depending on model |
Product dimensions (metric) : | 46.25 x 64.8 x 17.4 cm |
Weight : | 21 kg |
Infrastructure management : | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download)(standard), HPE iLO Advanced, and OneView Advanced (optional) |
Warranty : | 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. |
Drive supported : | 24 SFF SAS/SATA HDD/SSD, or 16 SFF SAS/SATA HDD/SSD and 8 SFF NVMe SSD. 12 LFF SAS/SATAHDD/SSD or 12 LFF NHP SATA HDD, depending on model. Upgrade option kits are available. |
