HP EliteBook 860 Notebook PC

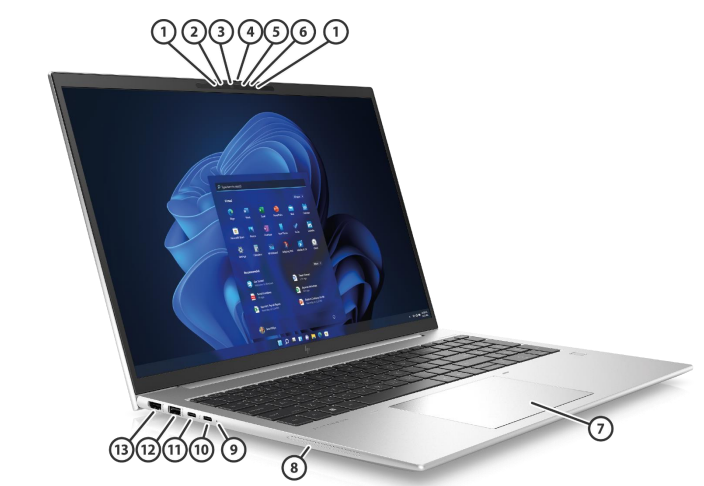

Left View :
1. | Internal Microphones (2) | 2. | Ambient Light Sensor (Optional) | |
3. | Webcam | 4. | Camera Shutter | |
5. | IR Camera (Optional) | 6. | IR Camera LEDs (Optional) | |
7. | Glass Clickpad | 8. | Smartcard Reader (Optional) |
9.LED Indicator10.Thunderbolt 4 with USB4 Type-C 40Gbps signaling rate (USB Power Delivery, DisplayPort 1.4)
11. | Thunderbolt 4 with USB4 Type-C 40Gbps signaling rate (USB Power Delivery, DisplayPort 1.4)1 | 12. | SuperSpeed USB Type-A 5Gbps signaling rate (USB 3.2 Gen 1) |
13. | HDMI 2.0b Port (Cable not included) |

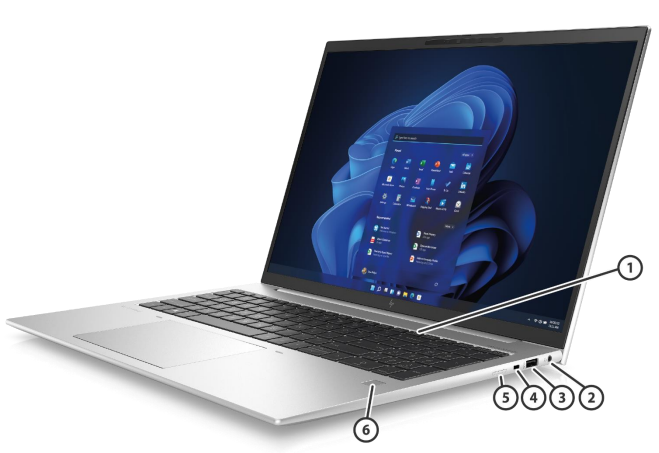

Right View :
1. | Power Button Key | 2. | Audio Combo Jack |
3. | SuperSpeed USB Type-A 5Gbps signaling rate (Charging) (USB 3.2 Gen 1) | 4. | Nano Security Lock Slot (Lock sold separately) |
5. | SIM Card Slot (Optional) | 6. | Touch Fingerprint Sensor (Select models) |
Windows 11
Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.
Fast and efficient wireless LAN
The portability of your PC and the reliability of a fast connection determines where you can work. Get a fast and reliable connection in dense wireless environments with gigabit-speed Wi-Fi.
Browse confidently
Help protect your PC from websites and read only Microsoft Office and PDF attachments with embedded malware, ransomware, or viruses with hardware-enforced security from HP Sure Click.
Available Operating Systems : | Windows 11 Pro, Windows 11 Pro Education, Windows 11 Home – HP recommends Windows 11 Pro for business, Windows 11 Home Single Language, Windows 11 Pro (Windows 11 Enterprise or Windows 10 Enterprise available with a Volume Licensing Agreement), Windows 11 Pro (preinstalled with Windows 10 Pro Downgrade), FreeDOS |
Processor family : | 12th Generation Intel Core i7 processor, 12th Generation Intel Core i5 processor |
Available Processors : | • Intel Core i5-1235U (1.3 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology,12 MB L3 cache, 10 cores, 12 threads) • Intel Core i5-1240P (1.7 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology, 12 MB L3 cache, 12 cores,16 threads) • Intel Core i7-1255U (1.7 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 12 MB L3 cache, 10 cores, 12 threads) • Intel Core i7-1260P (1.6 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 18 MB L3 cache, 12 cores, 16 threads) • Intel Core i5-1245U (1.6 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology, 12 MB L3 cache, 10 cores, 12 threads), supports Intel vPro Technology • Intel Core i5-1250P (1.7 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology, 18 MB L3 cache,12 cores, 16 threads), supports Intel vPro Technology • Intel Core i7-1265U (1.8 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 12 MB L3 cache, 10 cores, 12 threads), supports Intel vPro Technology • Intel Core i7-1270P (1.6 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 18 L3 MB cache, 12 cores, 16 threads), supports Intel vPro Technology • Intel Core i7-1280P (1.8 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 24 MB L3 cache,14 cores, 20 threads), supports Intel vPro Technology |
Maximum memory : | 64 GB DDR5-4800 MHz RAM Dual channel support. |
Memory slots : | 2 SODIMM |
Internal storage : | 256 GB up to 2 TB PCIe Gen4 x 4 NVMe M.2 SSD TLC, 256 GB up to 512 GB PCIe Gen4 x 4 NVMe M.2 SED SSD TLC, 256 GB up to 512 GB PCIe NVMe Value M.2 SSD |
Display size (diagonal, metric) : | 40.6 cm (16") |
Display : | 16" diagonal, WUXGA (1920 x 1200), touch, IPS, anti-glare, 250 nits, 45% NTSC; 16" diagonal, WUXGA (1920 x 1200), IPS, anti-glare,1000 nits,100% sRGB, HP Sure View Reflect integrated privacy screen; 16" diagonal, WUXGA (1920 x 1200), IPS, anti-glare, 250 nits, 45% NTSC; 16" diagonal, WUXGA (1920 x 1200), IPS, anti-glare, 400 nits, low power,100% sRGB with HP Eye Ease 40.6 cm (16") diagonal, WUXGA (1920 x 1200), touch, IPS, anti-glare, 250 nits, 45% NTSC; 40.6 cm (16") diagonal, WUXGA (1920 x 1200), IPS, anti-glare,1000 nits, 100% sRGB, HP Sure View Reflect integrated privacy screen; 40.6 cm (16") diagonal, WUXGA (1920 x 1200), IPS, anti-glare, 250 nits, 45% NTSC; 40.6 cm (16") diagonal, WUXGA (1920 x 1200), IPS, anti-glare, 400 nits, low power,100% sRGB with HP Eye Ease |
Audio : | Audio by Bang & Olufsen, dual stereo speakers, dual array world-facing microphones |
Wireless technologies : | (Compatible with Miracast-certified devices.) |
Ports and Connectors : | Thunderbolt with USB Type-C 40Gbps signaling rate (USB Power Delivery, DisplayPort 1.4); 2 USB Type-A 5Gbps signaling rate (1 charging); 1 HDMI 2.0; 1 stereo headphone/microphone combo jack ; (HDMI cable sold separately.); Optional Ports: 1 Smartcard reader(optional); 1 External Nano SIM slot for WWAN |
Input devices : | HP Premium Keyboard – spill resistant, optional backlit keyboard with drain and DuraKeys; Clickpad with multi-touch gesture support; Microsoft Precision Touchpad |
Communications : | HP Module with NXP NFC Controller NPC300 I2C NCI ; Intel Wi-Fi 6E AX211 (2 x 2) and Bluetooth 5.3 wireless card, vPro; Intel Wi-Fi 6E AX211 (2 x 2) and Bluetooth 5.3 wireless card, non-vPro ; Intel XMM 7560 LTE Advanced Pro Cat 16; Intel 5G Solution 5000 ; Near Field Communication (NFC) Module |
Camera : | 5 MP camera; IR Camera (select models) |
Software : | HP Connection Optimizer; HP Image Assistant; HP Hot key Support; HP MAC Address Manager; HP Support Assistant; HP Easy Clean; HP Power Manager; my HP; HP Privacy Settings; Touchpoint Customizer for Commercial; HP Notifications; HP Quick Drop; HP Quick Touch; HP PC Hardware Diagnostics Windows Buy Office (Sold separately) |
Available software : | HP Smart Support |
Security management : | Absolute persistence module; HP DriveLock and Automatic DriveLock; HP Secure Erase; HP Sure Click; HP Sure Sense; BIOS Update via Network; HP Sure Admin; HP BIOSphere Gen6; HPClient Security Manager Gen7; Secured-core PC capable; TPM 2.0 embedded security chip (Common Criteria EAL4+ and FIPS 140-2 Level 2 Certified); HP Sure Start Gen7; HP Wake on WLAN; HP Tamper Lock; HP Sure Run Gen5; HP Sure Recover |
Security Software Licenses : | HP Wolf Pro Security Edition |
Fingerprint reader : | Fingerprint sensor (select models) |
Management features : | HP Driver Packs; HP System Software Manager (SSM); HP BIOS Config Utility (BCU); HP Client Catalog; HP Manageability Integration Kit Gen3 |
Power : | HP Smart 65 W USB Type-C adapter; HP Smart 45 W USB Type-C adapter |
Battery type : | HP Long Life 3-cell, 51 Wh polymer; HP Long Life 6-cell, 76 Wh Li-ion |
Dimensions : | 14.12 x 9.88 x 0.76 in 35.87 x 25.1 x 1.92 cm, 2.7 x 21.7 x 13.5 in 6.9 x 55.2 x 34.5 cm (Package) |
Weight : | Starting at 3.87 lb Starting at 1.76 kg (Weight will vary by configuration.) |
Ecolabels : | EPEAT registered configurations available; SEPA; TCO Certified configurations available |
Sustainable impact specifications : | Low Halogen; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 55% post-consumerrecycled plastic; Ocean-bound plastic in speaker enclosure(s) |
Warranty : | 1-year warranty and 90 day software limited warranty options depending on country. Batteries have a default one year limited warranty. |
