Overview

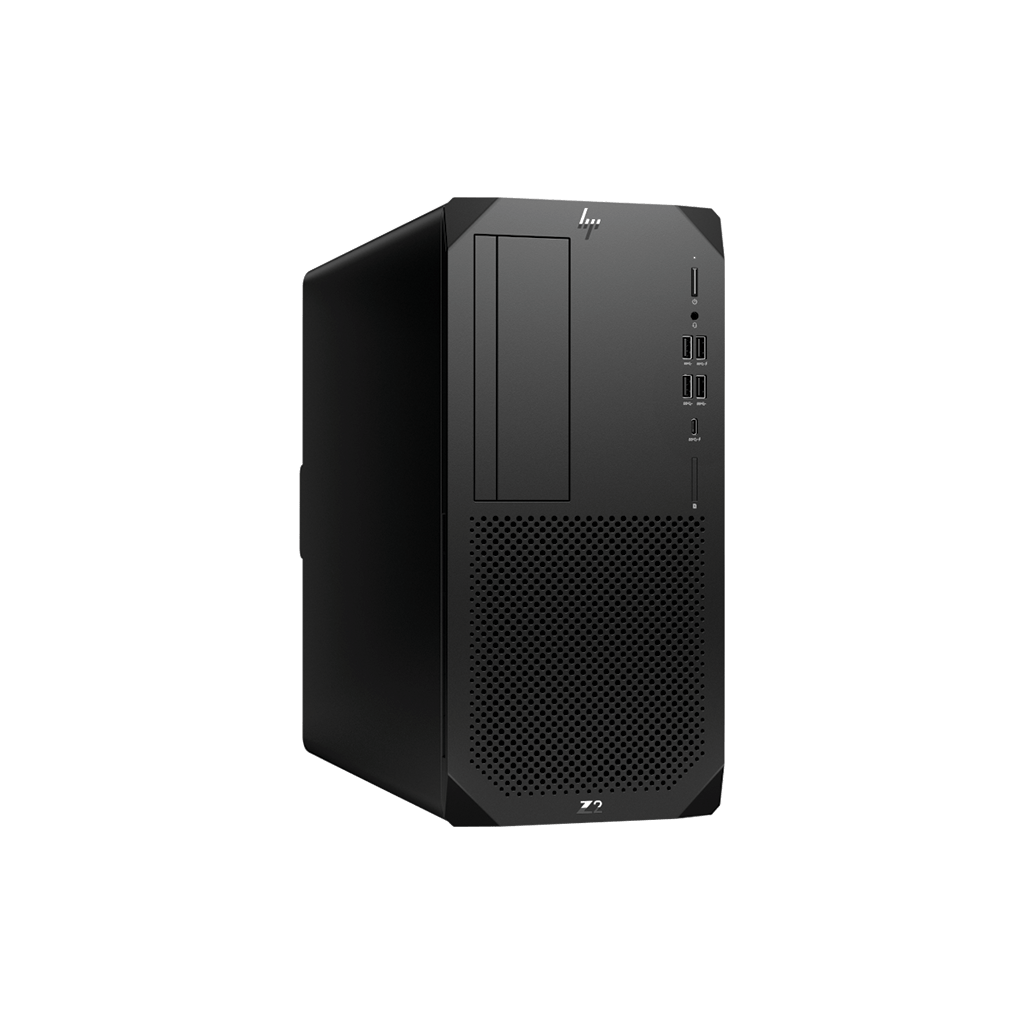

HP Z2 Tower Workstation

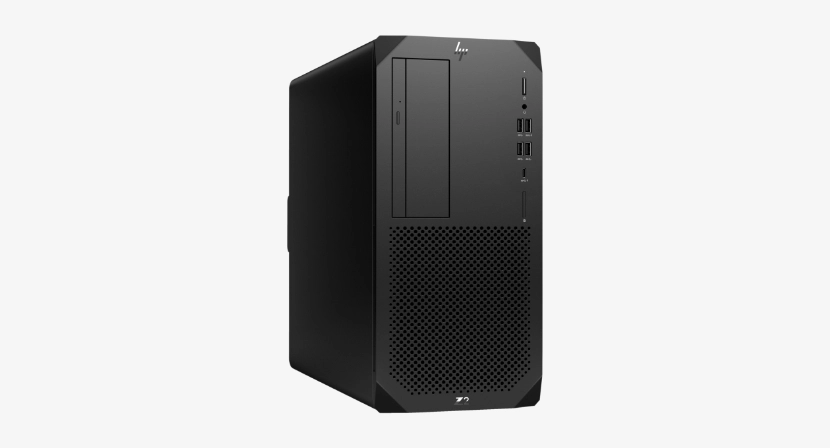

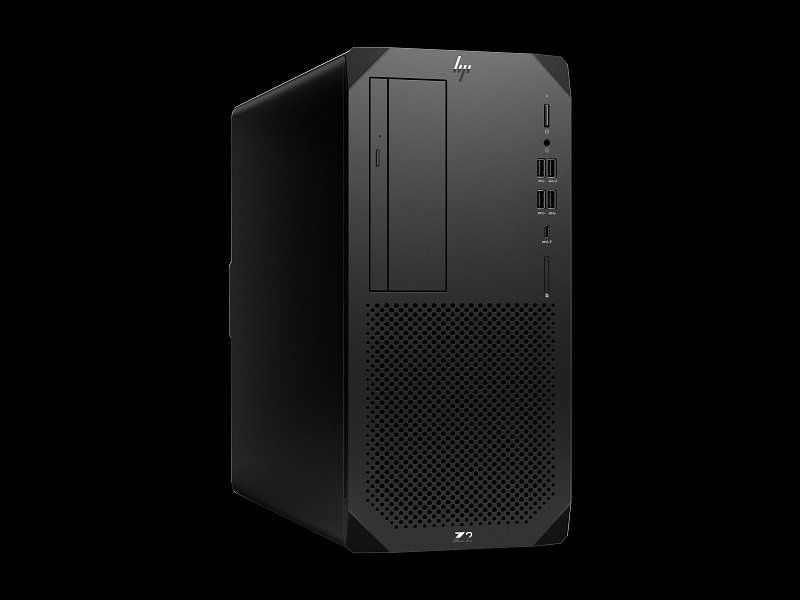

Front View:

1.	HDD Activity LED	2.	Power button
3.	Universal audio jack (with CTIA & OMTP headset support)
4.	2 Type-A SuperSpeed USB 5Gbps signaling rate port (1 charge supports up to 5V/2.1A)
5.	2 Type-A SuperSpeed USB 10Gbps signaling rate port
6.	1 Type-C SuperSpeed USB 20Gbps signaling rate port
7.	SD card reader 4.0 (optional)	8.	Slim ODD Bay
9.	External 5.25'' bay

(1) Audio Line-in jack, (1) Audio Line-out jack

DisplayPort 1.4

Flex I/O module: choose one from the following:

(1) Dual Type-A SuperSpeed USB 5Gbps signaling rate port

(1) VGA

(1) DisplayPort 1.4

(1) HDMI 2.0b

(1) 2nd GbE LAN

(1) Type-C SuperSpeed USB 10Gbps signaling rate port (Power Delivery 15W, Alt Mode DisplayPort)

(1) Thunderbolt 3 with Type-C SuperSpeed USB4 40Gbps signaling rate (cabled to PCIe AIC)

2 High-speed USB 480Mbps signaling rate port

Rear View:

5.	2 Type-A SuperSpeed USB 10Gbps signaling rate port
6.	(1) Type-A SuperSpeed USB 5Gbps signaling rate port, (1) Hi-Speed USB 480Mbps signaling rate port
7.	WLAN Antenna (optional)	8.	RJ-45	9.	2nd serial port (optional)
10.	Release latch	11.	Power connector	12.	Type-C Thunderbolt 3 port (optional)

Features

Your new benchmark for entry workstation power

Unleash the full power of professional graphics and an Intel Xeon or Core Pro processor on compute heavy projects. With support for PCIe Gen 4 and designed for unthrottled performance, you can render in real time and visualize projects faster.

Industry-leading security. Durability you can trust

Backed by 360K hours of rigorous testing, military-standard testing, and software certifications, every component is put to the test. And with hardened security features, your Z2 SFF is protected from the BIOS to the browser, above and below the OS.

Access your Z2 from anywhere

Tap into the power of your Z2 from anywhere and on almost any device with HP Z-Central Remote Boost. Get fast responsiveness and exceptional image quality on demanding projects. Seamlessly collaborate with dispersed teams, even on 3D models. Support your unique user needs with a choice of Windows 10 Pro 64 or Linux operating systems. Bring your ideas to life quickly and run multiple apps simultaneously with the latest Intel Core vPro processors. For ultimate performance, choose the unlocked K-Series which allows for overclocking. Run demanding professional apps with the latest Intel Xeon vPro processors for powerful performance and productivity. And, avoid system crashes in the middle of your workflow with Error Correction Code memory.

Specification

Available Operating Systems:	Windows 11 Pro, Windows 11 Home – HP recommends Windows 11 Pro for Business, Linux Ready, Ubuntu 20.04 LTS
Processor family:	12th Generation Intel Core i7 processor; 12th Generation Intel Core i9 processor; 12th Generation Intel Core i3 processor; 12th Generation Intel Core i5 processor
Available Processors:	Intel Core i5-12400 with Intel UHD Graphics (2.5 GHz P-core base frequency, up to 4.4 GHz P-core Max Turbo frequency, 18 MB L3 cache, 6 P-cores, 12 threads); Intel Core i3-12300 with Intel UHD Graphics (3.5 GHz P-core base frequency, up to 4.4 GHz P-core Max Turbo frequency, 12 MB L3 cache, 4 P-cores, 8 threads); Intel Core i3-12100 with Intel UHD Graphics (3.3 GHz P-core base frequency, up to 4.3 GHz P-core Max Turbo frequency, 12 MB L3 cache, 4 P-cores, 8 threads); Intel Core i9-12900 with Intel UHD Graphics (1.8 GHz E-core base frequency, 2.4 GHz P-core base frequency, up to 3.8 GHz E-core Max Turbo frequency, up to 5.0 GHz P-core Max Turbo frequency, up to 5.1 GHz with Intel Turbo Boost Technology, 30 MB L3 cache, 8 P-cores and 8 E-cores, 24 threads), supports Intel vPro Technology; Intel Core i9-12900KS with Intel UHD Graphics (2.5 GHz E-core base frequency, 3.4 GHz P-core base frequency, up to 4.0 GHz E-core Max Turbo frequency, up to 5.2 GHz P-core Max Turbo frequency, 30 MB L3 cache, 8 P-cores and 8 E-core, 24 threads); Intel Core i5-12600K with Intel UHD Graphics (2.8 GHz E-core base frequency, 3.7 GHz P-core base frequency, up to 3.6 GHz E-core Max Turbo frequency, up to 4.9 GHz P-core Max Turbo frequency, 20 MB L3 cache, 6 P cores and 4 E-cores, 16 threads); Intel Core i5-12600 with Intel UHD Graphics (3.3 GHz P-core base frequency, up to 4.8 GHz P-core Max Turbo frequency, 18 MB L3 cache, 6 P-cores, 12 threads); Intel Core i5-12500 with Intel UHD Graphics (3.0 GHz P-core base frequency, up to 4.6 GHz P-core Max Turbo frequency, 18 MB L3 cache, 6 P-cores, 12 threads); Intel Core i9-12900 with Intel UHD Graphics (1.8 GHz E-core base frequency, 2.4 GHz P-core base frequency, up to 3.8 GHz E-core Max Turbo frequency, up to 5.0 GHz P-core Max Turbo frequency, up to 5.1 GHz with Intel Turbo Boost Technology, 30 MB L3 cache, 8 P-cores and 8 E cores, 24 threads); Intel Core i9-12900K with Intel UHD Graphics (2.4 GHz E-core base frequency, 3.2 GHz P-core base frequency, up to 3.9 GHz E-core Max Turbo frequency, up to 5.2 GHz P-core Max Turbo frequency, 30 MB L3 cache, 8 P-cores and 8 E-core, 24 threads); Intel Core i7-12700K with Intel UHD Graphics (2.7 GHz E-core base frequency, 3.6 GHz P-core base frequency, up to 3.8 GHz E-core Max Turbo frequency, up to 5.0 GHz P-core Max Turbo frequency, 25 MB L3 cache, 8 P-cores and 4 E-core, 20 threads); Intel Core i7-12700 with Intel UHD Graphics (1.6 GHz E-core base frequency, 2.1 GHz P-core base frequency, up to 3.6 GHz E core Max Turbo frequency, up to 4.8 GHz P-core Max Turbo frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 25 MB L3 cache, 8 P-cores and 4 E-cores, 20 threads); Intel Core i9-12900K with Intel UHD Graphics (2.4 GHz E-core base frequency, 3.2 GHz P-core base frequency, up to 3.9 GHz E-core Max Turbo frequency, up to 5.2 GHz P-core Max Turbo frequency, 30 MB L3 cache, 8 P-cores and 8 E-core, 24 threads), supports Intel vPro Technology; Intel Core i7-12700K with Intel UHD Graphics (2.7 GHz E-core base frequency, 3.6 GHz P-core base frequency, up to 3.8 GHz E-core Max Turbo frequency, up to 5.0 GHz P-core Max Turbo frequency, 25 MB L3 cache, 8 P-cores and 4 E-core, 20 threads), supports Intel vPro Technology
Maximum memory:	128 GB DDR5-4400 non-ECC SDRAM; 128 GB DDR5-4400 ECC SDRAM, Transfer rates up to 4400 MT/s.
Memory slots:	4 DIMM
Internal storage:	500 GB up to 2 TB 7200 rpm SATA HDD, 1 TB up to 12 TB 7200 rpm Enterprise SATA HDD up to 500 GB 7200 rpm SED HDD, 512 GB up to 4 TB HP Z Turbo Drive PCIe NVMe TLC M.2 SSD, 512 GB up to 4 TB HP Z Turbo Drive PCIe NVMe SED Opal 2 TLC M.2 SSD, 256 GB up to 1 TB PCIe NVMe Value M.2 SSD, 500 GB up to 2 TB CRU SHIPS Removable NVMe Module
Optical drive:	HP Slim DVD-ROM; HP Slim DVD-Writer (##opticaldriveavailnote##)
Available Graphics:	• Integrated: Intel UHD Graphics 770 • Entry 3D: NVIDIA T400 4 GB; NVIDIA T400 2 GB; NVIDIA T600 4 GB • Mid-range 3D: AMD Radeon Pro W6600 (8GB GDDR6 dedicated); NVIDIA T1000 8 GB; NVIDIA RTX A2000 12GB; NVIDIA T1000 4 GB • High-end 3D: AMD Radeon Pro W6800 (32 GB GDDR6 dedicated); NVIDIA RTX A5000 24 GB; NVIDIA RTX A4000 16 GB; AMD Radeon RX 6700 XT (12 GB GDDR6 dedicated)
Audio:	Realtek ALC3205-VA2-CG, 2.0W internal mono speaker
Expansion slots:	1 PCIe 3 x 4 (x 16 connector); 1 PCIe 3 x 4 (x 4 connector); 1 PCIe 3 x 1 (x 4 connector); 1 PCIe 5 x 16 (x 16 connector); 1 M.2 2230 PCIe 3 x1 for WLAN (1 M.2 2230 slot for WLAN and 3 M.2 2280 slots for storage)
Input devices:	HP Wired Desktop 320K keyboard; HP Wired Desktop 320MK Mouse and Keyboard; HP 125 Wired Keyboard; HP 655 Wireless Keyboard and mouse combo; HP 975 Wireless Keyboard; HP 455 Programmable Wireless Keyboard ; HP Wired Desktop 320M mouse; HP wired desktop 128 laser mouse; HP 125 Wired Mouse; HP Creator 935 Black Wireless Mouse
Communications:	LAN: Integrated Intel I219-LM GbE; Intel I225-LM 2.5 GbE LOM, non-vPro; Intel Ethernet Network Adapter I225-T1; Intel X550-T2 dual-port 10GbE NIC; Allied Telesis AT-2911T/2-901 dual-port 1GbE NIC; WLAN: Intel Wi-Fi 6E AX211 (2x2) and Bluetooth 5.3 wireless card with external antenna; Intel Wi-Fi 6 AX211 (2x2) and Bluetooth 5.3 wireless card with internal antenna
Drive Bays:	One slim ODD; One 5.25" ODD; One 2.5" HDD; Two 3.5" HDD; Three M.2 NVME 2280 SSD
Software:	HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; ZCentral Remote Boost; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0;
Security management:	HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2; HP Sure Run Gen5
Security Software Licenses:	HP Wolf Pro Security Edition
Management features:	HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download)
Power:	350 W 92% efficient, wide-ranging, active PFC; 700 W 92% efficient, wide-ranging, active PFC; 500 W 90% efficient, wide-ranging, active PFC
Dimensions:	35.6 x 16.9 x 38.5 cm; (Standard tower orientation.)
Weight:	Starting at 7.2 kg; (Exact weight depends on configuration.)
Ecolabels:	IT ECO Declaration; TCO Certified configurations available; EPEAT Gold registered in the U.S.
Energy star certified (series fixed):	ENERGY STAR certified
Sustainable impact specifications:	Ocean-bound plastic in speaker enclosure; 45% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; 80 Plus Gold power supplies available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and system fan; Contains recycled metal
Compatible displays:	All HP Z Displays and HP DreamColor Displays are supported.
