HP ZBook Fury Mobile Workstation

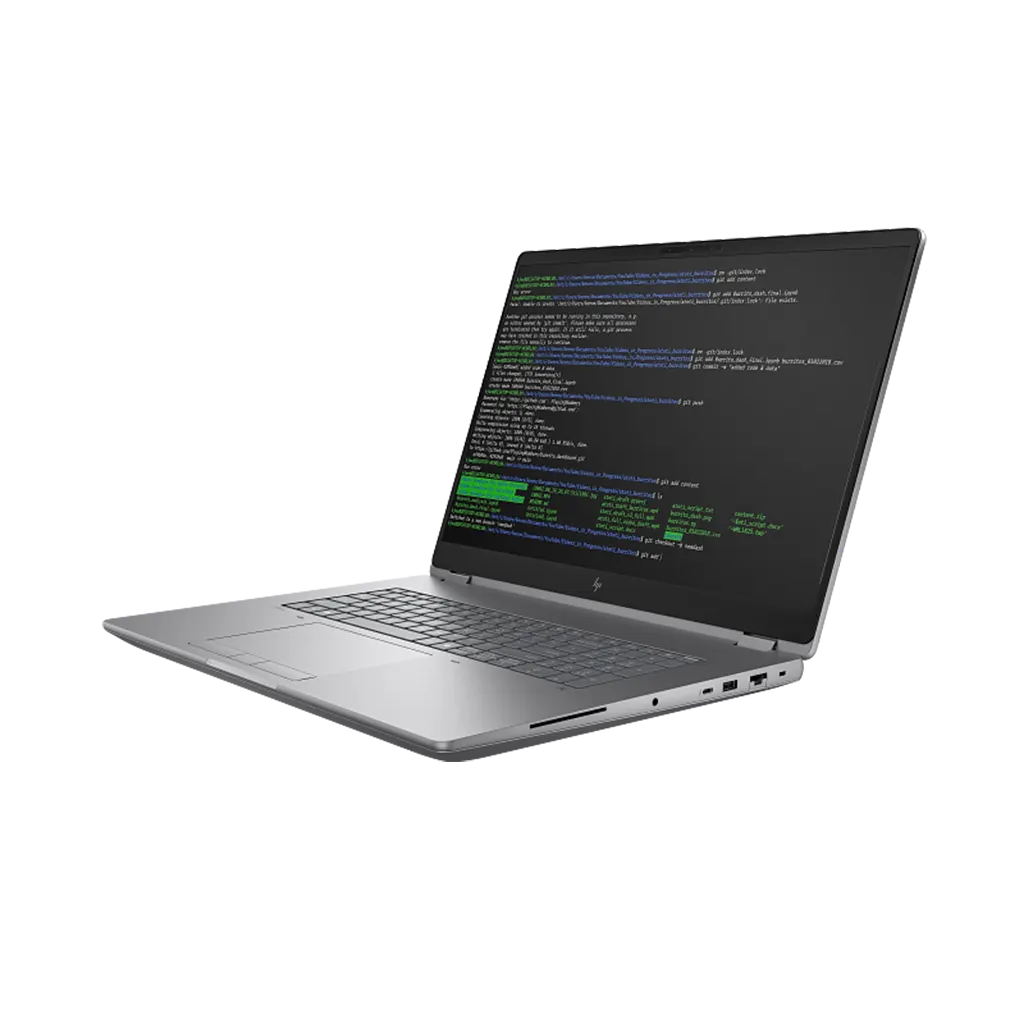

Right View:

1. Ambient Light Sensor (Optional) 2. Internal Microphones (2) 3. Webcam LED (Optional)
4. Webcam 5. Camera Shutter 6. IR Camera (Optional)
7. IR Camera LEDs (Optional) 8. Glass Clickpad
9. Power Button Key 10. Nano Security Lock Slot (Lock sold separately) 11. RJ45
12. SuperSpeed USB Type-A 5Gbps signaling rate 13. SuperSpeed USB Type-A 5Gbps signaling rate 14. Audio Combo Jack
15. Smartcard Reader 16. Touch Fingerprint Sensor (Select models)
1. LED Indicator 2. Power connector
3. Thunderbolt 4 with USB4 Type-C 40Gbps signaling rate (USB Power Delivery, DisplayPort 1.4) 1
4. mDP port 5. HDMI 2.1 Port (Cable not included) 6. SD Card Reader

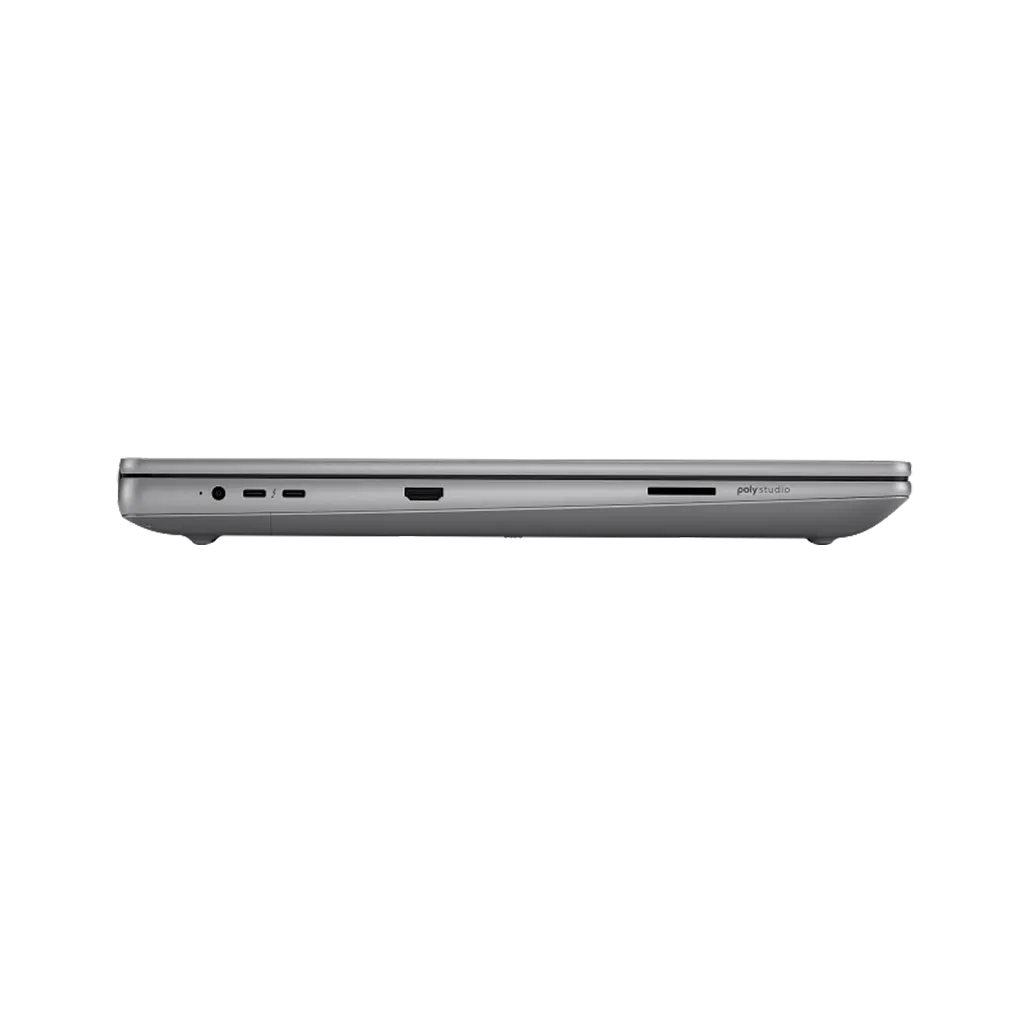

Left View:

Bottom View:

1. Fan Venting 2. Service Door Latch
Tackle multiple heavy workflows—simultaneously

Blaze through graphics-heavy projects with a desktop-class Intel CPU 1 and integrated or discrete graphics. At just 25.95mm thin, 5.32lb(NTS), and 5.67lb(TS), our flagship Z-Book delivers extreme performance from anywhere. With HP Sure View Reflect your screen is guarded against drying eyes.

Upgrade. Expand. Evolve

Get desktop-level storage and memory with room to grow. Expansion is easy with tool-free access to components. Get unthrottled performance from the latest Intel CPUs and up to NVIDIA RTX A5000 or AMD Radeon Pro laptop GPUs. Ray trace in the background while working on your design, or share your power with teammates using Z-Central Rem.

Thin bezel for the enhanced display area

Bring projects to life on a brilliant display and see more of your screen with a slim-bezel design. Designed for ultimate durability, this Z-Book undergoes brutal MIL-STD 810H tests to help ensure this PC keeps rolling through your workday. Strenuously tested to meet ISV certification and deliver superb performance with leading software providers, including Autodesk and Adobe.

Available Operating Systems : Windows 11 Pro, Windows 11 Home – HP recommends Windows 11 Pro for business, Windows 11 Pro (preinstalled with Windows 10 Pro Downgrade), Ubuntu 22.04 LTS, FreeDOS 3.0
Processor family : 13th Generation Intel Core i9 processor; 13th Generation Intel Core i7 processor; 13th Generation Intel Core i5 processor
Available Processors : • Intel Core i9-13900HX with Intel UHD Graphics (1.6 GHz E-core base frequency, 2.2 GHz P-core base frequency, up to 3.9 GHz E-core Max Turbo frequency, up to 5.4 GHz P-core Max Turbo frequency, 36 MB L3 cache, 8 P-cores and 16 E-cores, 32 threads) • Intel Core i7-13700HX with Intel UHD Graphics (1.5 GHz E-core base frequency, 2.1 GHz P-core base frequency, up to 3.7 GHz E-core Max Turbo frequency, up to 5.0 GHz P-core Max Turbo frequency, 30 MB L3 cache, 8 P-cores and 8 E-cores, 24 threads) • Intel Core i9-13950HX with Intel UHD Graphics (1.6 GHz E-core base frequency, 2.2 GHz P-core base frequency, up to 4.0 GHz E-core Max Turbo frequency, up to 5.5 GHz P-core Max Turbo frequency, 36 MB L3 cache, 8 P-cores and 16 E-cores, 32 threads), supports Intel vPro Technology • Intel Core i7-13850HX with Intel UHD Graphics (1.5 GHz E-core base frequency, 2.1 GHz P-core base frequency, up to 3.8 GHz E-core Max Turbo frequency, up to 5.3 GHz P-core Max Turbo frequency, 30 MB L3 cache, 8 P-cores and 12 E-cores, 28 threads), supports Intel vPro Technology • Intel Core i5-13600HX with Intel UHD Graphics (1.9 GHz E-core base frequency, 2.6 GHz P-core base frequency, up to 3.6 GHz E-core Max Turbo frequency, up to 4.8 GHz P-core Max Turbo frequency, 24 MB L3 cache, 6 P-cores and 8 E-cores, 20 threads), supports Intel vPro Technology
Chipset : Intel WM790
Maximum memory : 128 GB DDR5-4800 ECC SODIMM; 128 GB DDR5-5600 non-ECC SODIMM, Transfer rates up to 4000 MT/s.
Memory slots : 4 SODIMM; supports dual channel
Internal storage : 512 GB up to 4 TB PCIe Gen4 x4 NVMe M.2 SSD, 512 GB up to 2 TB PCIe NVMe M.2 SED SSD
Maximum storage capacity : Up to 12 TB
Display size (diagonal) : 15.6"; 16"
Display size (diagonal,metric) : 39.6 cm (15.6"); 40.6 cm (16")
Display : 15.6" diagonal, FHD (1920 x 1080), IPS, anti-glare, 250 nits, 45% NTSC; 16" diagonal, WQUXGA (3840 x 2400), OLED, touch, BrightView, eDP + PSR, micro-edge, Low Blue Light, 400 nits, 100% DCI-P3; 16" diagonal, WQUXGA (3840 x 2400), 120 Hz, IPS, anti-glare, eDP + PSR, micro-edge, 500 nits, 100% DCI-P3,HP DreamColor; 16" diagonal, WUXGA (1920 x 1200), IPS, anti-glare, eDP + PSR, micro-edge, 400 nits, 100% sRGB; 16" diagonal, WUXGA (1920 x 1200),IPS, anti-glare, eDP + PSR, micro-edge, 1000 nits, 100% sRGB, HP Sure View integrated privacy screen39.6 cm (15.6") diagonal, FHD (1920 x 1080), IPS, anti-glare, 250 nits, 45% NTSC; 40.6 cm (16") diagonal, WQUXGA (3840 x 2400), OLED, touch, BrightView,eDP + PSR, micro-edge, Low Blue Light,400 nits, 100% DCI-P3; 40.6 cm (16") diagonal, WQUXGA (3840 x 2400), 120 Hz, IPS, anti-glare, eDP + PSR, micro-edge, 500 nits, 100% DCI-P3, HP DreamColor; 40.6 cm (16") diagonal, WUXGA (1920 x 1200), IPS, anti-glare, eDP + PSR, micro-edge, 400 nits, 100% sRGB;40.6 cm (16") diagonal, WUXGA (1920 x 1200), IPS, anti-glare, eDP + PSR, micro-edge, 1000 nits, 100% sRGB, HP Sure View integrated privacy screen
Available Graphics : Integrated: Intel UHD Graphics, Discrete: NVIDIA RTX 5000 Ada Generation Laptop GPU (16 GB GDDR6 dedicated) NVIDIA RTX 4000 Ada Generation Laptop GPU (12 GB GDDR6 dedicated) NVIDIA RTX 3500 Ada Generation Laptop GPU (12 GB GDDR6 dedicated NVIDIA RTX 2000 Ada Generation Laptop GPU (8 GB GDDR6 dedicated) NVIDIA RTX A1000 Laptop GPU (6 GB GDDR6 dedicated)(Discrete graphics options planned to be available at a later date and require factory configuration at the time of hardware purchase.)
Audio : Audio by Bang & Olufsen, dual stereo speakers with discrete amps, HP World Facing Microphone dual array digital microphones, functions keys for volume upand down, combo microphone/headphone jack, HD audio with 200Hz Bass Roll off
Memory card device : 1 SD 7.1 media card reader (select models)
Ports and Connectors : • Right side: 1 RJ-45; 1 headphone/microphone combo; 1 SuperSpeed USB Type-A 5Gbps signaling rate (charging); 1 SuperSpeed USB Type-A 5Gbps signaling rate • Left side: 1 power connector; 2 Thunderbolt with USB4 Type-C 40Gbps signaling rate (USB Power Delivery, DisplayPort 1.4, HP Sleep and Charge); 1 HDMI 2.1; 1 Mini DisplayPort 1.4a;
Keyboard : HP Premium Quiet Keyboard, spill-resistant, full-size, backlit, keyboard with a Programmable Key and numeric keypad; HP RGB Keyboard - Full-size, per-key RGB backlit keyboard
Mouse : Extra large, Quiet Key, 3-button touchpad
Communications : • LAN:Intel I219-LM GbE, vPro; Intel I219-V GbE, non-vPro; • WLAN:Intel Wi-Fi 6E AX211 (2x2) and Bluetooth 5.3 wireless card, vPro; Intel Wi-Fi 6E AX211 (2x2) and Bluetooth 5.3 wireless card, non-vPro; • WWAN:Intel XMM 7560 LTE Advanced Pro Cat 16; Intel 5G Solution 5000;
Camera : 5MP IR Camera
Available software : HP Smart Support
Security Software Licenses : HP Wolf Pro Security Edition
Fingerprint reader : Fingerprint sensor (select models)
Management features : HP Power Manager
Power : HP Slim Smart 150 W External AC power adapter; HP Slim Smart 200 W External AC power adapter; HP Slim Smart 230 W External AC power adapter
Battery type : HP Slim Smart 150 W External AC power adapter; HP Slim Smart 200 W External AC power adapter; HP Slim Smart 230 W External AC power adapter
Dimensions : 14.29 x 9.87 x 1.09 in (WWAN); 14.29 x 9.87 x 1.13 in (WLAN); 36.3 x 25.06 x 2.86 cm (WLAN); 36.3 x 25.06 x 2.77 cm (WWAN)
Weight : Starting at 5.3 lb (2.4 kg)
