HP ZBook Studio
1. | Ambient Color Sensor (Optional) | 2. | Top Facing Microphone (2) | 3. | IR Camera LEDs |
4. | IR Camera | 5. | HD Camera | 6. | Webcam LED |
7. | Ambient Light Sensor (Optional) | 8. | Clickpad | 9. | Camera Privacy Key |
10. | Nano Security Lock slot | 11. | Super Speed USB Type-A 5Gbps signaling rate (charging) |
12. | SuperSpeed USB Type-C 10Gbps signaling rate Delivery Out, Display Out) | 13. | Speakers |
14. | Woofer | 15. | Fingerprint Sensor (Optional) |
1. | Power Charging indicator | 2. | Power connector |
3. | (2) Thunderbolt 4 with USB4 Type-C 40Gbps signaling rate (USB Power Delivery, DisplayPort 1.4, HP Sleep and Charge) | 4. | headphone/microphone combo |
5. | Woofer |

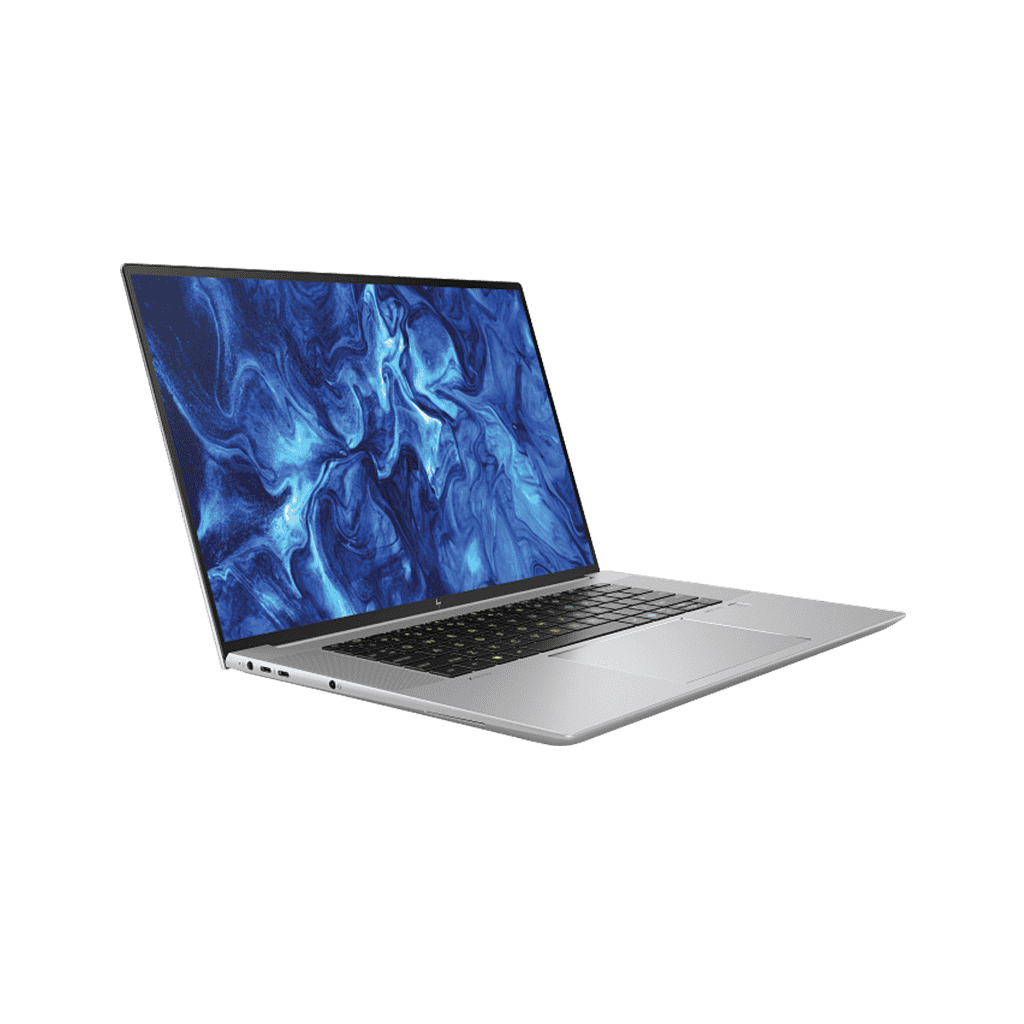

Left View
Power to push the limits
Push your workflow further with up to an Intel Core Ultra 9 CPU with optional Intel vPro NVIDIA RTX Ada Laptop GPU or GeForce RTX GPU, and 64 GB RAM. From 3D design to machine learning this PC delivers peak performance.
Immerse in your work
Get complete color accuracy and a 120Hz refresh rate with a 16:10 HP DreamColor display or choose an OLED display for absolute blacks and extreme whites. Customize your keyboard lighting and highlight shortcuts with RGB per-key LED backlighting.
Create and collaborate everywhere
Follow inspiration wherever it strikes with a thin and light laptop that delivers the power to run the software you need on the go. Work and collaborate effectively with a long-lasting battery , AI Noise Suppression and Wi-Fi 7
Intel Core Ultra Processor
Unleash productivity with a new architecture that delivers power-efficient performance for complex business workloads and is purpose-built for the next era of AI software by sending the right task to the right engine at the right time.
NVIDIA Graphics
With up to NVIDIA RTX 3000 Ada or GeForce RTX 4070 Laptop GPU, accelerate rendering, graphics and compute workflows to unlock new levels of productivity.
Up to 64 GB DDR5 SODIMM
Easily upgrade and expand your device up to 64 GB RAM to power through projects for fast rendering, editing, and simulating.
VR Ready
Develop lifelike content with professional graphics and peak processor performance, and transform how you design, train, and collaborate.
Up to 4 TB
Blitz through multiple tasks and ditch external drives with local NVMe storage.
Fans and Venting
Razor-thin curved metal fans and rear venting make this our highest performing cooling solution to date.
HP DreamColor Display
Have confidence in what you see on screen with an optional 16” diagonal HP DreamColor Display with 100% DCI-P3 color gamut and a 120Hz refresh rate you get smooth motion for high-speed videos.
OLED Touch Display
With 400 nits of brightness and richer depth of color and contrast than traditional LED screens, walk through presentations quicker with an optional touch display.
FHD Display
Enjoy crystal-clear visuals and images with the vibrant quality of 2 million pixels. The 1920 x 1080 Full High Definition resolution gives all your digital content a new dimension.
A Work Laptop You'll Want to Game On
Enjoy fast, smooth gameplay with an NVIDIA RTX professional or GeForce RTX GPU. Highlight favorite keys and create custom key maps with Z Light Space software and a RGB keyboard with per-key LED backlighting.
Z Light Space
Personalize your laptop RGB lighting in one place. With Z Light Space software, you can customize your keyboard lighting and highlight specific keys with the RGB per-key LED backlighting.
Available Operating Systems : | Windows 11 Pro - HP recommends Windows 11 Pro, Windows 11 Home – HP recommends Windows 11 Pro for Business, Windows 11 Pro (preinstalled with Windows 10 Pro Downgrade), Ubuntu 22.04 LTS, FreeDOS 3.0 |
Processor family : | Intel Core Ultra 5 processor; Intel Core Ultra 7 processor; Intel Core Ultra 9 processor;13th Generation Intel Core i9 processor; 13th Generation Intel Core i7 processor; 13th Generation Intel Core i5 processor |
Available Processors : | Intel Core Ultra5 135H; Intel Core Ultra7 155H; Intel Core Ultra7 165H; Intel Core Ultra9 185H, Intel Core i9-13900H with Intel UHD Graphics, Intel Core i9-13900HK with Intel UHD Graphics; Intel Core i7-13800H with Intel UHD Graphics; Intel Core i7-13700H with Intel UHD Graphics; Intel Core i5-13600H with Intel UHD Graphics. |
Maximum memory : | 64 GB DDR5-5600 non-ECC SODIMM;64 GB DDR5-4800 non-ECC SODIMM; 64 GB DDR5-5600 non-ECC SODIMM, Memory is SODIMM. Supports dual channel memory. |
Memory slots : | 2 SODIMM; supports dual channel |
Internal storage : | 512 GB up to 4 TB PCIe Gen4 x4 NVMe M.2 SSD, 512 GB up to 1 TB PCIe NVMe M.2 SED SSD |
Maximum storage capacity : | Up to 4 TB |
Display size (diagonal) : | 16" |
Display size (diagonal, metric) : | 40.6 cm (16") |
Display : | 16" diagonal, WQUXGA (3840 x 2400), OLED, touch, BrightView, eDP + PSR, micro-edge, Low Blue Light, 400 nits, 100% DCI-P3; 16" diagonal, WQUXGA(3840 x 2400), 120 Hz, IPS, anti-glare, eDP + PSR, micro-edge, 500 nits, 100% DCI-P3, HP DreamColor; 16" diagonal, WUXGA (1920 x 1200), IPS, anti-glare,eDP + PSR, micro-edge, 400 nits, 100% sRGB40.6 cm (16") diagonal, WQUXGA (3840 x 2400), OLED, touch, BrightView, eDP + PSR, micro-edge, Low Blue Light,400 nits, 100% DCI-P3; 40.6 cm (16")diagonal, WQUXGA (3840 x 2400), 120 Hz, IPS, anti-glare, eDP + PSR, micro-edge, 500 nits, 100% DCI-P3, HP DreamColor; 40.6 cm (16") diagonal, WUXGA(1920 x 1200), IPS, anti-glare, eDP + PSR, micro-edge, 400 nits, 100% sRGB |
Audio : | Audio by Poly Studio, dual stereo speakers, HP World Facing Microphone dual array digital microphones, functions keys for volume up and down, combo microphone/headphone jack, HD audio;Audio by Bang & Olufsen, Quad-speaker audio (2 tweeters & 2 Quad woofers), 2 Top Facing Microphone dual array digital microphones, functions keys forvolume up and down, combo microphone/headphone jack, HD audio with 200Hz Bass Roll off |
Memory card device : | 1 microSD 7.1 media card reader |
Ports and Connectors : | • Left side: 1 power connector; 1 headphone/microphone combo; 2 Thunderbolt with USB4 Type-C 40Gbps signaling rate (USB Power Delivery, Display Port 1.4, HP Sleep and Charge) • Right side: 1 Super Speed USB Type-A 5Gbps signaling rate (charging); 1 Super Speed USB Type-C 10Gbps signaling rate (USB Power Delivery, Display Port 1.4;) |
Keyboard : | HP Premium Quiet Keyboard – spill-resistant, full-size, backlit keyboard with drain and DuraKeys; HP RGB Keyboard - Full-size, per-key RGB backlit keyboard; HP RGB Z Command Keyboard – spill-resistant, full-size, backlit keyboard with drain and DuraKeys |
Mouse : | Clickpad with image sensor, supporting multi-touch gestures and taps |
Communications : | WLAN: Intel Wi-Fi 6E AX211 (2 x 2) and Bluetooth 5.3 wireless card, vPro; Intel Wi-Fi 6E AX211 (2 x 2) and Bluetooth 5.3 wireless card, non-vPro; |
Camera : | 720p HD IR camera |
Fingerprint reader : | Fingerprint sensor (select models) |
Management features : | HP Power Manager |
Power : | HP Slim Smart 150 W External AC power adapter; HP Slim Smart 200 W External AC power adapter |
Battery type : | HP Long Life 6-cell, 86 Wh Li-ion polymer |
Battery recharge time : | Supports battery fast charge: approximately 50% in 30 minutes |
Dimensions : | 14.02 x 9.54 x 0.76 in (non-touch); 14.02 x 9.54 x 0.72 in (touch) 35.6 x 24.2 x 1.9 cm (non-touch); 35.6 x 24.2 x 1.8 cm (touch); |
Weight : | Starting at 3.81 lb Starting at 1.73 kg (Weight varies by configuration and components.) |
Ecolabels : | EPEAT Gold registered in the U.S. |
Low Halogen : | Sustainable impact specifications |
