Powerful yet affordable

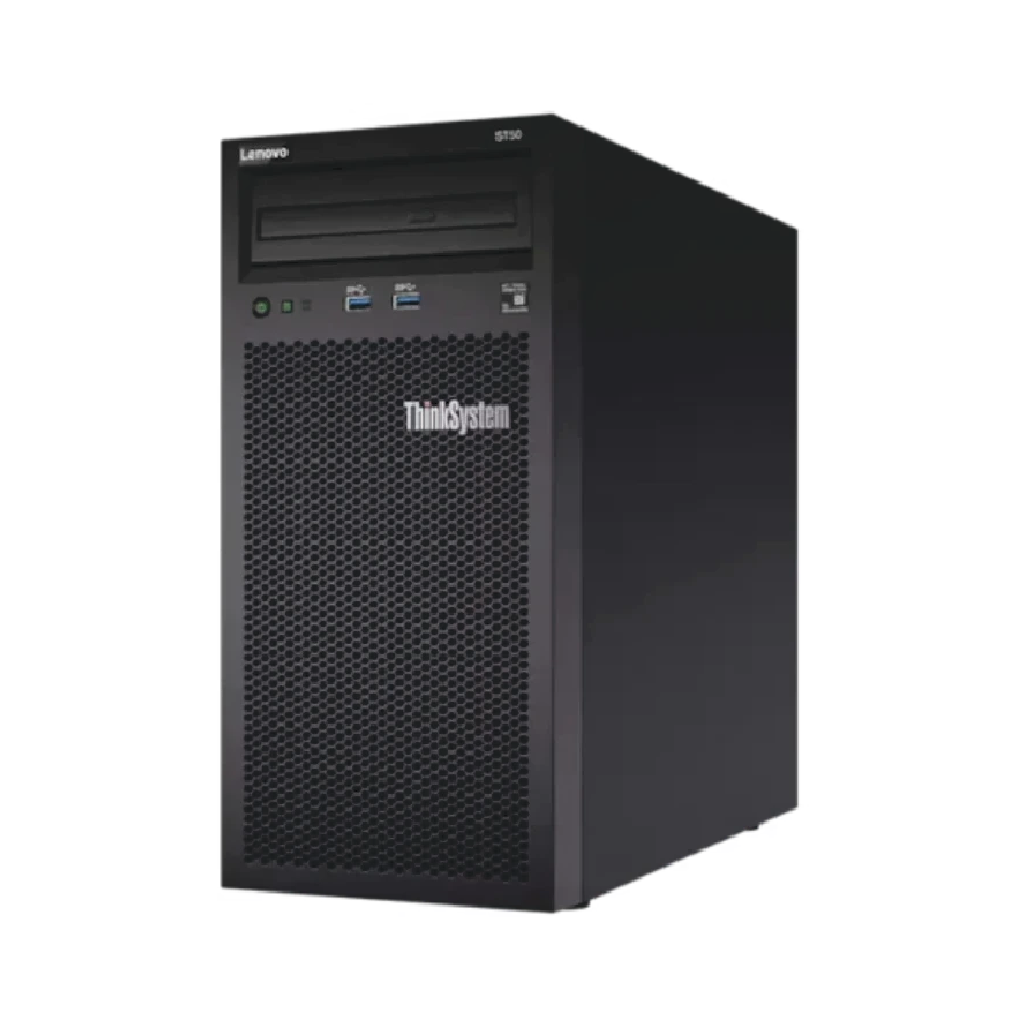

The Lenovo ThinkSystem ST50 provides an easily manageable, ideal first server for a small-to-medium-sized business, and remote or branch office, or retail environments looking to increase productivity. A value-optimized motherboard design paired with the latest Intel Xeon E-2200 processors extend a generation-to-generation 2-digit percentage performance increase and offer an aggressive price point for the ST50 versus high-end desktops, and with higher enterprise-level capabilities than a desktop alternative.
Flexible value
The ThinkSystem ST50 is designed with components common across the portfolio, high reliability, and essential scale-out capabilities for growing businesses including GPU support and array of compatible storage drives. Save time and reduce costs with Intel Active Management Technology (AMT), which monitors system health and prevents data disruption, while the USB version of Lenovo’s XClarity provisioning manager enables easy setup and firmware upgrades.
Environmentally friendly
The compact ThinkSystem ST50 excels at being inconspicuous in an office environment thanks to its compact size and whisper-quiet operation. Energy-efficient design elements, including the Intel Xeon E CPU and TruDDR4 memory, reduces power consumption under standard workloads, providing energy cost-savings in addition to increased server uptime and workplace productivity.
Number of Processors : | 1 x Intel Xeon E-2200 processor, up to 6 cores at 95W |
Drive Bays : | 4 x; either 3 x 3.5-inch + 1 x 5.25-inch fixed, or 4 x 3.5-inch fixed (the 4th requires the 5.25-inch to 3.5-inch optical drive conversion kit); support a mixed configuration with HDDs and SSDs; 5.25- inch bay supports optical or tape drive (unless converted to 3.5-inch); single SD card (32GB) or dual-redundant SD cards (32GB / 64GB) |
Memory : | Up to 64GB in 4 x UDIMM slots using 16GB DIMMs; 2666MHz TruDDR4 |
Expansion Slots : | Up to 3 x PCIe Gen3 slots: one x 16/x 16, one x 1/x 1, and one x 16/x 4 slot |
Network Interface : | 1 x 1GbE RJ45 Ethernet port |
HBA/RAID : | Support Intel VROC software RAID support; multiple hardware RAID configurations supported |

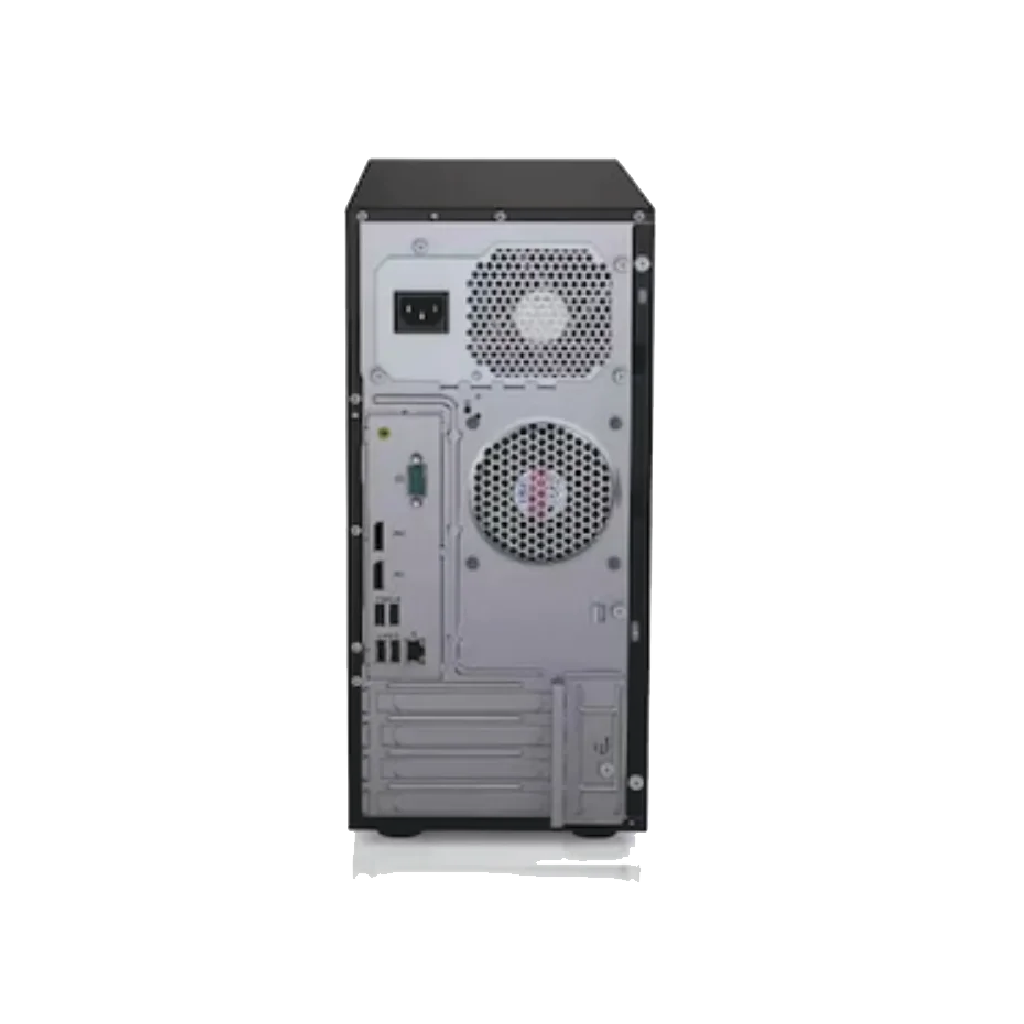

I/O Interface : | 2 x front USB 3.1 G1 ports; 2 x rear USB 3.1 G1 ports and 2 x rear USB 2.0 ports; 1 x Serial port; 2 x Display Ports (DP; optional for DP-to-VGA and DP-to-HDMI dongle); 1 x audio line out (for Microsoft client OS only) |
Form Factor/Height : | Tower; Optional 4U rack-mount kit; Height: 375mm (16.9 inches), Width: 175mm (6.9 inches), Depth 431mm (17 inches) |
Power : | 1 x fixed 80 PLUS power supply up to Platinum efficiency; 250W or 400W |
Systems Management : | Intel AMT; Lenovo XClarity Provisioning Manager – USB version; TPM 1.2 embedded (upgradable to TPM 2.0) |
OSes Supported : | Microsoft, SUSE, Red Hat, VMware vSphere, CentOS |
Warranty : | 1- and 3-year customer replaceable unit and onsite service, next business day 9x5, optional service upgrades |
