Dell PowerEdge R760xs
The Dell PowerEdge R760xs is Dell’s latest two-socket, rack server that is designed to run complex workloads using highly scalable memory, I/O, and network options. The systems feature the 4thand 5th Gen Intel Xeon Scalable Processor (Socket E1/LGA4677-1), up to 16 DIMMs, PCI Express (PCIe) 5.0 enabled expansion slots , and a broad selection of network interface technologies.
16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe drive
16 x 2.5-inch SAS/SATA drive system
8 x 2.5-inch SAS/SATA or NVMe drive system
12 x 3.5-inch SAS/SATA drive system
8 x 3.5-inch SAS/SATA drive system
no backplane configuration
Left control panel view
1. | Status LED indicators |
2. | System health and system ID |
Left control panel with optional iDRAC Quick Sync 2 indicator
1. | Status LED indicators |
2. | System health and system ID indicator |
3. | iDRAC Quick Sync 2 wireless indicator (optional) |
Right control panel view
1. | Power button | 2. | USB 2.0 port |
3. | iDRAC Direct (Micro-AB USB) port | 4. | VGA port |
Rear view of the system with no riser and one CPU
Rear view of the system with no riser and two CPUs
Rear view of the system with Riser 1c
Rear view of the system with Riser 1d
1. | Rear mounted front PERC | 2. | Cooling fan assembly | 3. | Memory module slots |
4. | Power interposer board | 5. | Intrusion switch | 6. | Rear drive cage |
7. | PSU 1 and PSU 2 | 8. | Riser | 9. | System board |
10. | Processor heat sink | 11. | SAS/SATA backplane | 12. | NVMe backplane |
13. | Information tag |
Processor features
The Intel 4th and 5th Generation Xeon Scalable Processors stack is the next generation data center processor offering with significant performance increases, integrated acceleration, and next generation memory and I/O. Sapphire Rapids and Emerald Rapids accelerate customer usage with unique workload optimizations
Storage controllers
Dell RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.
Power, thermal, and acoustics
PowerEdge servers have an extensive collection of sensors that automatically track thermal activity, which helps to regulate temperature by reducing server noise and power consumption. The table below lists the tools and technologies Dell offers to lower power consumption and increase energy efficiency.
Processor : | Up to 2 x 4th Gen Intel(R) Xeon(R) Scalable Processors (Sapphire Rapids) with up to 32 cores; Up to 2 x 5th Gen Intel(R) Xeon(R) Scalable Processors (Emerald Rapids) with up to 28 cores |
Memory : | 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s, supports registered ECC DDR5 DIMMs only |
Storage controllers : | Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB, External HBA (non-RAID): HBA355e; Software RAID: S160 |
Drive Bays : | Front bays: 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB, Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/ SSD) max 244.48 TB ; Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB (supported only with 12 x 3.5-inch SAS/SATA HDD/SSD configuration) |
Hot swap Redundant Power Supplies : | 1800 W Titanium 200—240 VAC or 240 HVDC, 1400 W Platinum 100—240 VAC or 240 HVDC, 1100 W Titanium 100—240 VAC or 240 HVDC, 1100 W LVDC -48 — (-60) VDC, 800 W Platinum 100—240 VAC or 240 HVDC, 700 W Titanium 200—240 VAC or 240 HVDC, 600 W Platinum 100—240 VAC or 240 HVDC |
Cooling Options : | Air cooling |
Fans : | Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans |
Dimensions and Weight : | Height – 86.8 mm (3.41 inches), Width – 482 mm (18.97 inches),Depth – 707.78 mm (27.85 inches) – without bezel,721.62 mm (28.4 inches) – with bezel, Weight – Max 28.6 kg (63.0 lbs.) |
Form Factor : | 2U rack server |
Embedded Management : | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module |

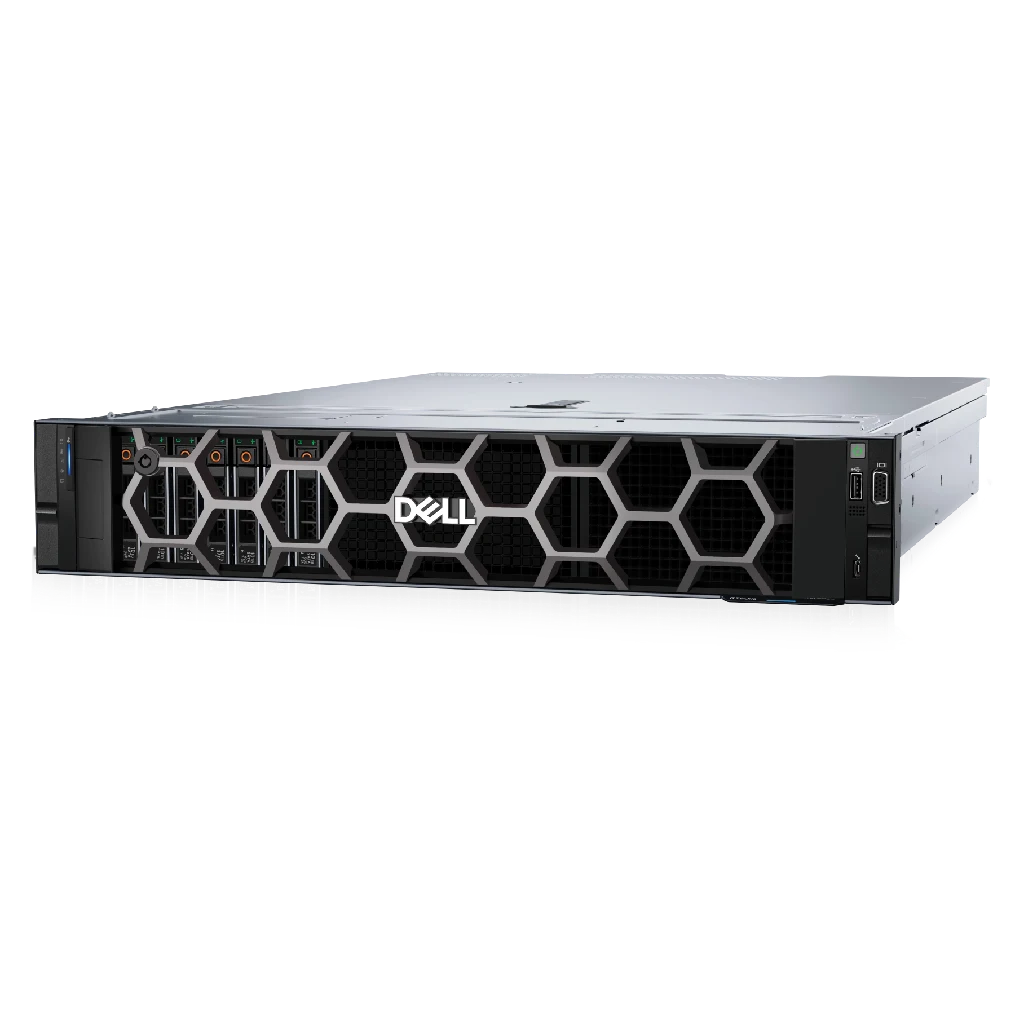

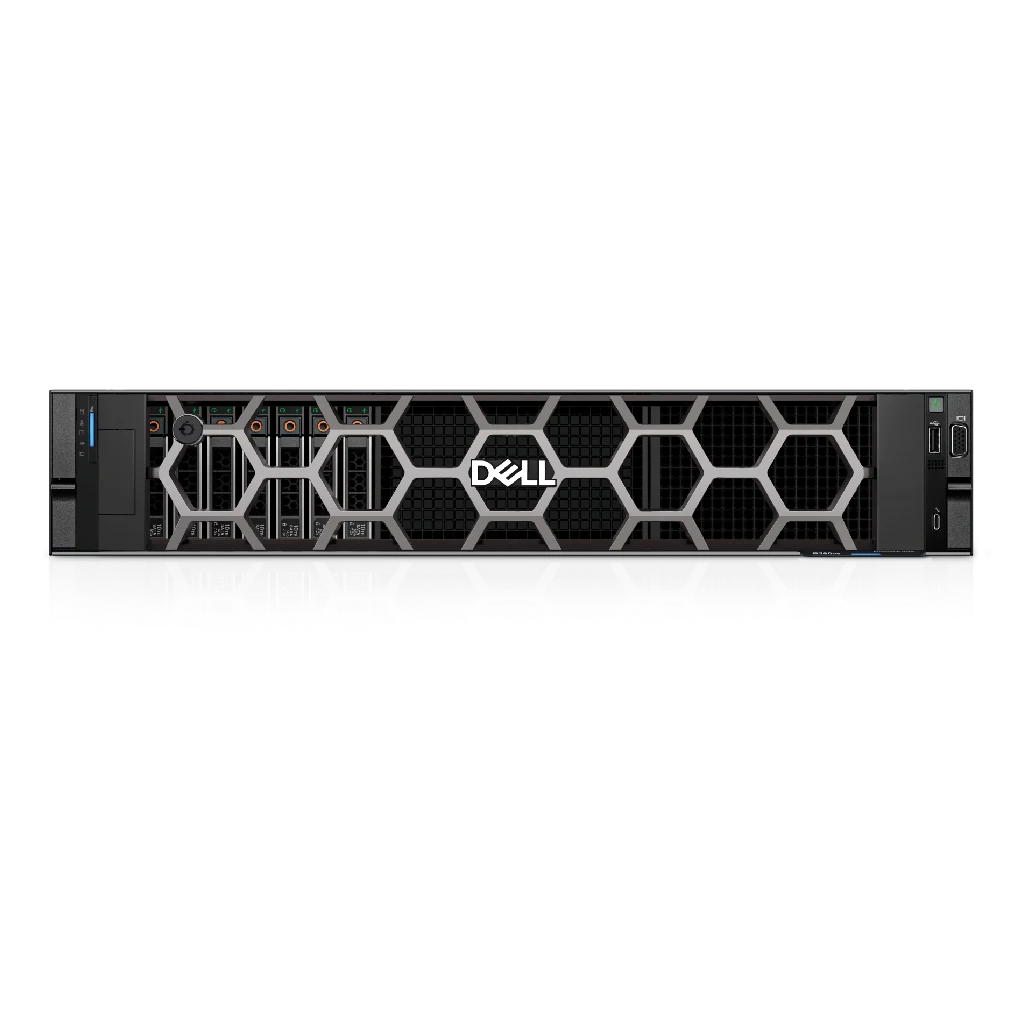

Bezel : | Optional LCD bezel or security bezel |
OpenManage Software : | CloudIQ for PowerEdge plug in, OpenManage Enterprise, OpenManage Enterprise Integration for VMware vCenter, OpenManage Integration for Microsoft System Center, OpenManage Integration with Windows Admin Center, OpenManage Power Manager plugin, OpenManage Service plugin, OpenManage Update Manager plugin |
Mobility : | OpenManage Mobile |
OpenManage Integrations : | BMC Truesight, Microsoft System Center, OpenManage Integration with ServiceNow, Red Hat Ansible Modules, Terraform Providers, VMware vCenter and vRealize Operations Manager |
Security : | Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt), Secure Boot, Secure Erase, Secured Component Verification (Hardware integrity check), Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
Embedded NIC : | 2 x 1 GbE LOM |
Network options : | 1 x OCP card 3.0 (optional) |
Ports : | Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA Internal Ports: 1 x USB 3.0 (optional); Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional) |
PCIe : | 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4), 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4) |
Operating System and Hypervisors : | Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Canonical Ubuntu Server LTS |
