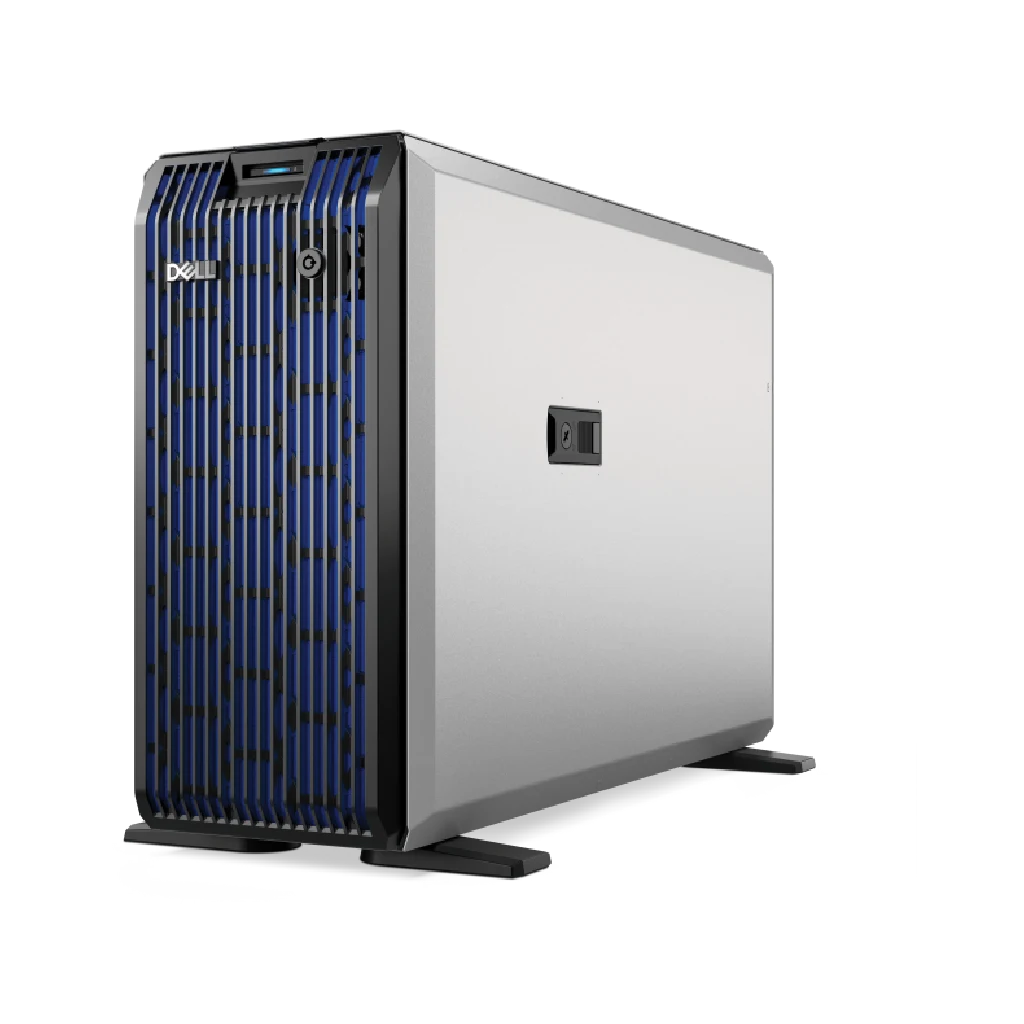

Dell PowerEdge T360-Tower
Powered by the latest Intel® Xeon® E-2400 processors, Dell PowerEdge T360 is an office-friendly tower server designed for productivity and data intensive applications, making it ideal for your growing business.
1. | Power button | 2. | Status LED indicators |
3. | Express Service Tag | 4. | USB 3.2 port |
5. | iDRAC Direct (Micro-AB USB) port |
6. | Optical drive |
7. | Drive Bay | 8. | BOSS-N1 (optional) |

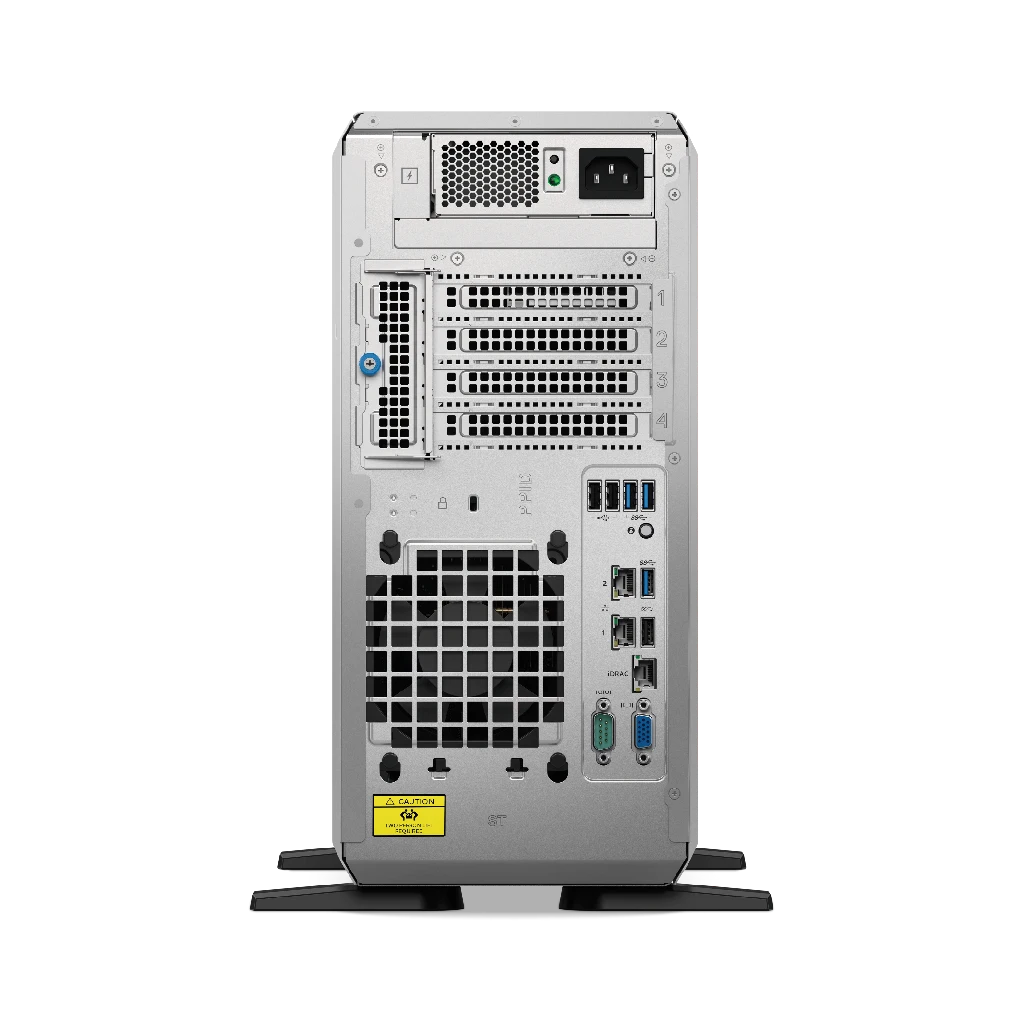

1. | Power supply unit (PSU 1) | 2. | Power supply unit (PSU 2) |
3. | PCIe expansion card slots (4) | 4. | 2 x USB 2.0 + 2 x USB 3.2 ports |
5. | System Identification (ID) button |
6. | NIC port (2) |
7. | USB 3.2 port | 8. | NIC port (1) |
9. | USB 2.0 port | 10. | Dedicated iDRAC Ethernet port |
11. | VGA port | 12. | Serial port |
1. | Power button | 2. | Status LED indicators |
3. | Express Service Tag | 4. | USB 3.2 port |
5. | iDRAC Direct (Micro-AB USB) port |
6. | Optical drive |
7. | Drive Bay | 8. | BOSS-N1 (optional) |
1. | Cabled power supply unit | 2. | PCIe expansion card slots (4) |
3. | 2 x USB 2.0 + 2 x USB 3.2 ports |
4. | System Identification (ID) button |
5. | NIC port (2) | 6. | USB 3.2 port |
7. | NIC port (1) | 8. | USB 2.0 port |
9. | Dedicated iDRAC Ethernet port |
10. | VGA port |
11. | Serial port |
Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation
The PowerEdge T360 is a 4.5U, single-socket server designed to address evolving compute demands for SMBs, Remote Office / Branch Office (ROBO) and Near-Edge.
Balance of performance and versatility for the most demanding workloads
The specially designed PowerEdge T360 tower server provides greater flexibility for customers needing versatile, affordable, and virtualization-ready processing power.
Processor : | One Intel Xeon E-2400 series processor with up to eight cores One Intel® Pentium® G7400/ G7400T processor with up to two cores |
Memory : | 4 DDR5 DIMM slots, supports UDIMM up to 32 GB per DIMM, speeds up to 4400 MT/s • Supports unregistered ECC DDR5 DIMMs only |
Storage Controller : | Internal Controllers HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter |
Drive Bays : | Up to 8 x 3.5-inch SAS/SATA HDD drives, max 128 TB Up to 4 x 3.5-inch SAS/SATA HDD drives, max 64 TB Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TB |
Power Supplies : | 450 W Platinum 100-240 V AC, cabled 600 W Platinum 100-240 V AC or 600 W 240 V DC, hot swap redundant 700 W Titanium 200-240 V AC or 700 W 240 V DC, hot swap redundant |
Fans : | • One Standard (STD) fan and one optional High performance (HPR) fan |
Dimensions : | Height 382.5 mm (15.06 inches) (with feet) 369.5 mm (14.55 inches) (without feet) Width 175.0 mm (6.89 inches) Depth 579.72 mm (22.82 inches) with bezel 562.12 mm (22.13 inches) without bezel |
Form Factor : | 4.5U tower server |
Embedded Management : | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module |
Bezel : | Security bezel, Optional Filter Bezel |
OpenManage Software : | •OpenManage Enterprise •OpenManage Power Manager plugin •OpenManage Service plugin •OpenManage Update Manager plugin •CloudIQ for PowerEdge plug in •OpenManage Enterprise Integration for VMware® vCenter™ •OpenManage Integration for Microsoft® System Center • OpenManage Integration with Windows Admin Center |
Mobility : | OpenManage Mobile |
Integrations and Connections : | • BMC Truesight • Microsoft® System Center • OpenManage Integration with ServiceNow • RedHat® Ansible® Modules • Terraform Providers • VMware® vCenter™ and vRealize Operations Manager |
Security : | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Secured-core server • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
Embedded : | 2 x 1GbE LOM |
GPU Options : | 1 x 60W Single-Width GPU |
Ports : | Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.2 Gen1 • Rear Ports :1 x Dedicated iDRAC Ethernet port,3 x USB 2.0,3 x USB 3.2 Gen1,1 x Serial port ,1 x VGA port ,2 x Ethernet ports |
Operating System and Hypervisors : | Canonical® Ubuntu® Server LTS,Microsoft® Windows Server® with Hyper-V,RedHat® Enterprise Linux,SUSE® Linux Enterprise Server ,VMware® ESXi® |
