Overview

HP Desktop Elite 800

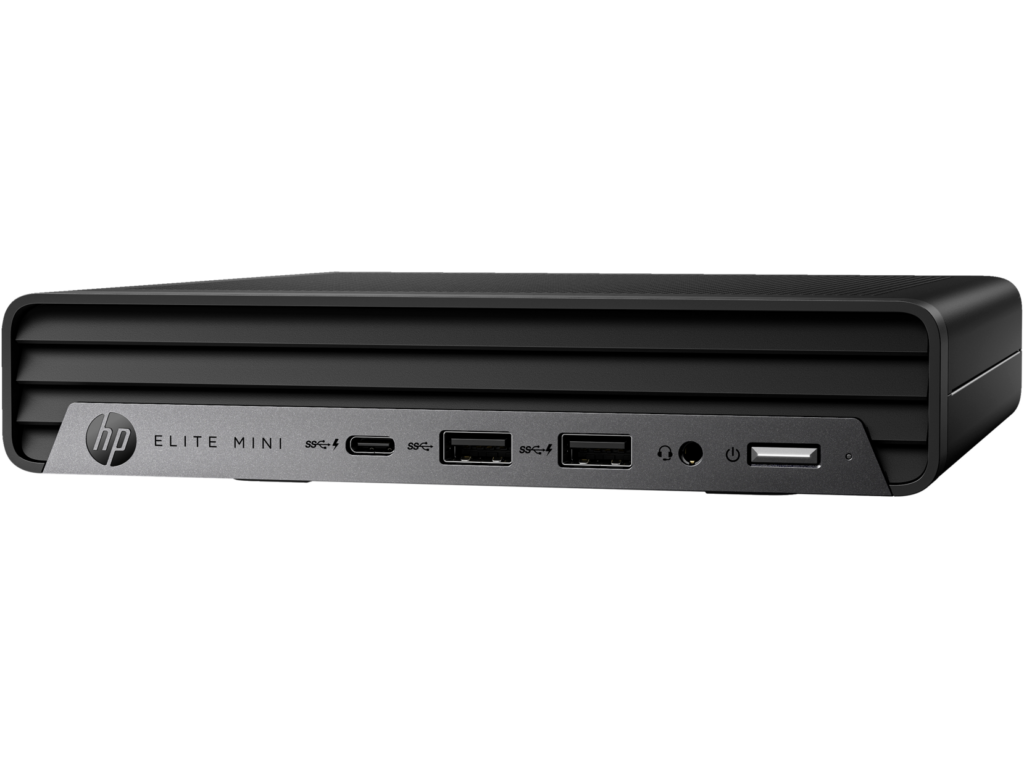

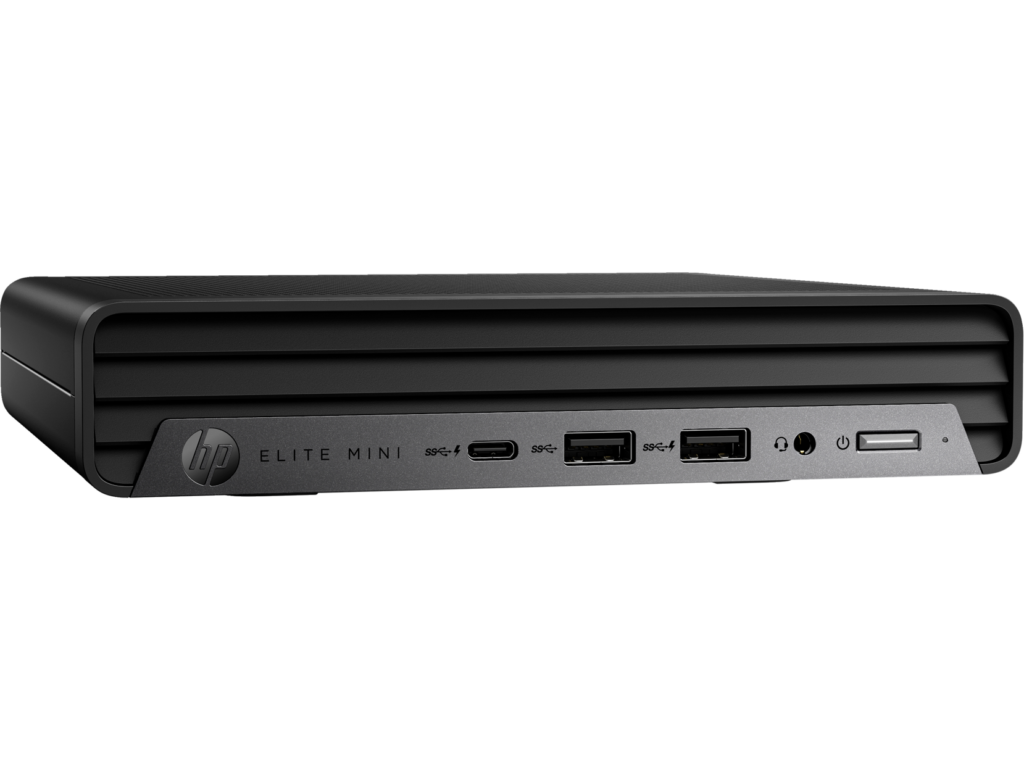

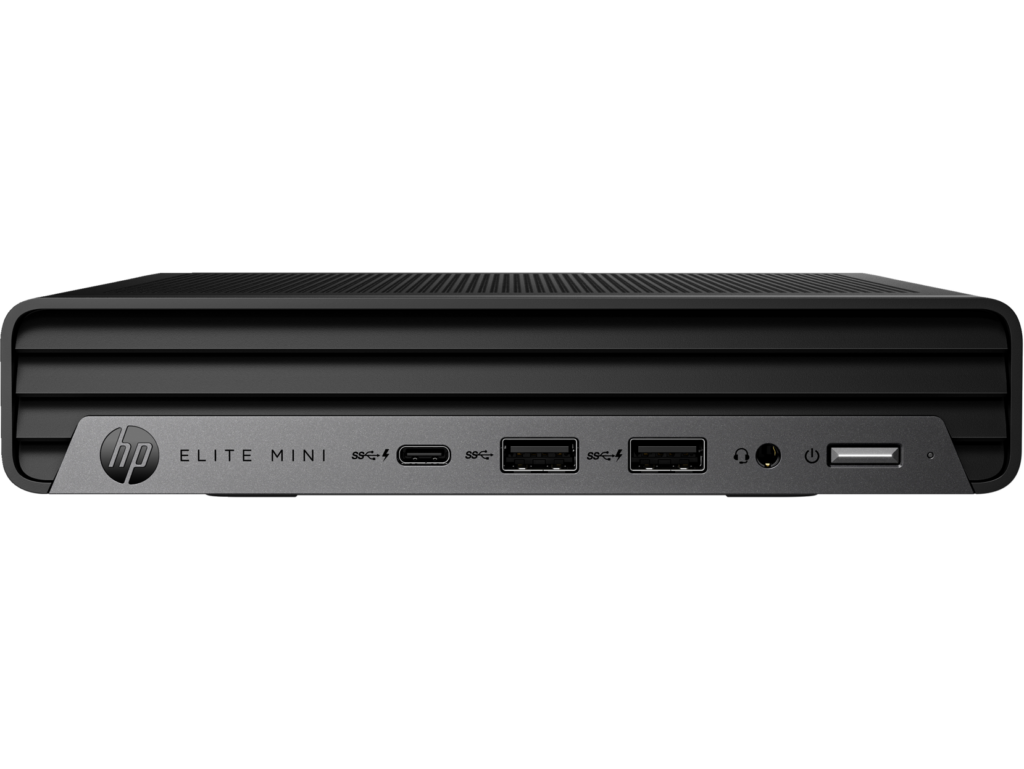

Front View:

1.	Type-C SuperSpeed USB 20Gbps signaling rate port (charge support up to 5V/3A)	2.	Type-A SuperSpeed USB 10Gbps signaling rate port
3.	Type-A SuperSpeed USB 10Gbps signaling rate port (Charge support up to 5V/1.5A)	4.	Combo Audio Jack with CTIA and OMTP headset support
5.	Dual-state power button	6.	Hard drive activity light

1.	(2) Dual-Mode DisplayPort 1.4a (DP++)	2.	HDMI port 2.1
3.	(2) Type-A SuperSpeed USB 10Gbps signaling rate port (Supporting wake from S4/S5 with keyboard/mouse connected and enabled in BIOS)
4.	Standard cable lock slot (10 mm)

Rear View:

5.	(1) Flex Port 1, choice of: • HDMI 2.1, • Fiber NIC 1Gbps, • VGA, • Serial, • DisplayPort 1.4a with HBR3 , • Thunderbolt 3.0 with USB 4.0, • Type-C SuperSpeed USB 10Gbps signaling rate port w/ DisplayPort Alt Mode and 100W Power Intake, • Intel I226V 2.5 Gigabit Network Connection LOM (non-vPro), • Dual Type A SuperSpeed USB 5Gbps signaling rate port
6.	Type-A SuperSpeed USB 10Gbps signaling rate port	7.	(1) Flex Port 23, choice of: • NVIDIA GeForce 3050 Ti discrete GPU, • Dual Type-A Hi-Speed USB 480Mbps signaling rate port , • Serial, • Second external antenna,
8.	RJ45 network connector	9.	External WLAN antenna opening
10.	Power connector	11.	Retractable Padlock loop

Features

Small size. Big impact

Get breakthrough performance with the latest Intel processor and DDR5 memory.

Protected by HP Wolf Security

HP Wolf Security for Business creates a hardware-enforced, always-on, resilient defense

Office and home deployment

Take the HP Elite Mini 800 home with you so you can stay productive in the hybrid work world.

Specification

Available Operating Systems:	Windows 11 Pro, Windows 11 Pro Education, Windows 11 Home – HP recommends Windows 11 Pro for business, Windows 11 Home Single Language – HP recommends Windows 11 Pro for business, FreeDOS
Processor family:	13th Generation Intel Core i9 processor;13th Generation Intel Core i7 processor;13th Generation Intel Core i5 processor;13th Generation Intel Core i3 processor;12th Generation Intel Core i9 processor;12th Generation Intel Core i7 processor;12th Generation Intel Core i5 processor;12th Generation Intel Core i3 processor;Intel Core i3 14th generation processor;Intel Core i5 14th generation processor;Intel Core i7 14th generation processor;Intel Core i9 14th generation processor;
Available Processors:	Intel Core i5-12500T with Intel UHD Graphics; Intel Core i5-12400T with Intel UHD Graphics; Intel Core i3-12300T with Intel UHD Graphics; Intel Core i3-12100T with Intel UHD Graphics; Intel Core i5-12600 with Intel UHD Graphics; Intel Core i5-12500 with Intel UHD Graphics; Intel Core i5-12400 with Intel UHD Graphics;Intel Core i3-12300 with Intel UHD Graphics; Intel Core i3-12100 with Intel UHD Graphics; Intel Core i5-12600T with Intel UHD Graphics; Intel Core i9-12900 with Intel UHD Graphics; Intel Core i9-12900T with Intel UHD Graphics; Intel Core i7-12700T with Intel UHD Graphics; Intel Core i7-12700 with Intel UHD Graphics; Intel Core i5-14100T with Intel UHD Graphics; Intel Core i9-13900; Intel Core i7-13700;Intel Core i5-13500; Intel Core i9-13900T with Intel UHD Graphics 770; Intel Core i9-13700T with Intel UHD Graphics 770; Intel Core i5-13500T with Intel UHD Graphics 770;Intel Core i3-13100T with Intel UHD Graphics 730; Intel Core i3-14100;Intel Core i5-14600 with Intel UHD Graphics; Intel Core i9-14900 with Intel UHD Graphics 770; Intel Core i9-14900T with Intel UHD Graphics; Intel Core i7-14700T with Intel UHD Graphics; Intel Core i5-14600T with Intel UHD Graphics; Intel Core i5-14500T with Intel UHD Graphics; Intel Core i5-14400T with Intel UHD Graphics.
Chipset:	Intel Q670 (vPro)
Form factor:	Mini
Maximum memory:	64 GB DDR5-4800 SDRAM; 64 GB DDR5-5600 SDRAM; Transferrates up to 4800 MT/s.; Transferrates up to 5600 MT/s
Memory slots:	2 SODIMM
Internal storage:	1 TB up to 1 TB 7200 rpm SATA
Available Graphics:	Integrated: Intel UHD Graphics 730; Intel UHD Graphics 770; Discrete: NVIDIA GeForce RTX 3050 Ti (4 GB GDDR6 dedicated)
Audio:	Realtek ALC3252 codec, universal audio jack with CTIA and OMTP headset support
Expansion slots:	1 M.2 2230; 2 M.2 2280 (1 M.2 2230 slot for WLAN and 2 M.2 2280 slots for storage)
Ports and connectors:	Front: 1 headset connector; 1 SuperSpeed USB Type-A 10Gbps signaling rate; 1 SuperSpeed USB Type-A 10Gbps signaling rate (charging); 1 SuperSpeed USB Type-C 20Gbps signaling rate ; Rear: 1 external antenna connector; 1 power connector; 1 RJ-45; 3 SuperSpeed USB Type-A 10Gbps signaling rate; 2 DisplayPort 1.4; 1 HDMI 2.1 ; Optional Ports: Flex IO port 2 – choose one of the following options: 2 USB 2.0 Type-A 480Mbps signaling rate,1 serial,1 second external antenna port; Flex IO port 1 – choose one of the following options: 1 VGA,1 DisplayPort 1.4,1 HDMI 2.1,1 SuperSpeed USB Type-C 10Gbps signaling rate (100W PowerIntake, Alt Mode DisplayPort), 2 SuperSpeed USB Type-A 5Gbps signaling rate, HP Fiber NIC Port (1Gbps), Intel 2.5 Gigabit Network Connection LOM,1 Thunderbolt 3 with USB 4.0,1 seria
Input devices:	HP USB Business Slim SmartCard CCID Keyboard; HP 125 Wired Keyboard; HP 125 Antimicrobial Wired Keyboard; HP 655 Wireless Keyboard and mouse combo; HP USB 320K Keyboard ; HP Wired Desktop 320M mouse; HP 125 Wired Mouse; HP 128 Laser Wired Mouse; HP 125 Antimicrobial Wired Mouse
Communications:	LAN: Integrated Intel I219LM GbE LOM ; Intel Wi-Fi 6E AX211 (2x2) and Bluetooth 5.3 wireless card, vPro; Intel Wi-Fi 6E AX211 (2x2) and Bluetooth 5.3 wireless card, non-vPro; Realtek Wi-Fi 6 RTL8852BE 802.11a/b/g/n/ax (2x2) and Bluetooth 5.3 wireless card; Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4 wireless card, vPro; Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4 wireless card, non-vPro
Drive Bays:	One 2.5" HDD
Environmental:	Operating temperature: 10 to 35°C; Operating humidity: 10 to 90% RH
Software:	HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; MyHP; HP Easy Clean; TouchpointCustomizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial
Available software:	HP Smart Support
Security Software Licenses:	HP Wolf Pro Security Edition
Power:	120 W external power adapter, up to 89% efficiency, active PFC; 180 W external power adapter, up to 89% efficiency, active PFC; 90 Wexternal power adapter, up to 89% efficiency
Dimensions:	17.7 x 17.5 x 3.4 cm; 49.8 x 13.2 x 23.5 cm (Package)
Weight:	1.42 kg; (Exact weight depends on configuration.)
Warranty:	1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certainrestrictions and exclusions apply.
