Overview

Lenovo ThinkCentre Tower M70t Gen 5

Front View:

1.	Power button
2.	Optional: Slim ODD
3.	Optional: Card reader (3-in-1)
4.	Mic
5.	Headphone / mic combo
6.	USB-C® (USB 5Gbps)
7.	4 x USB-A (USB 5Gbps)

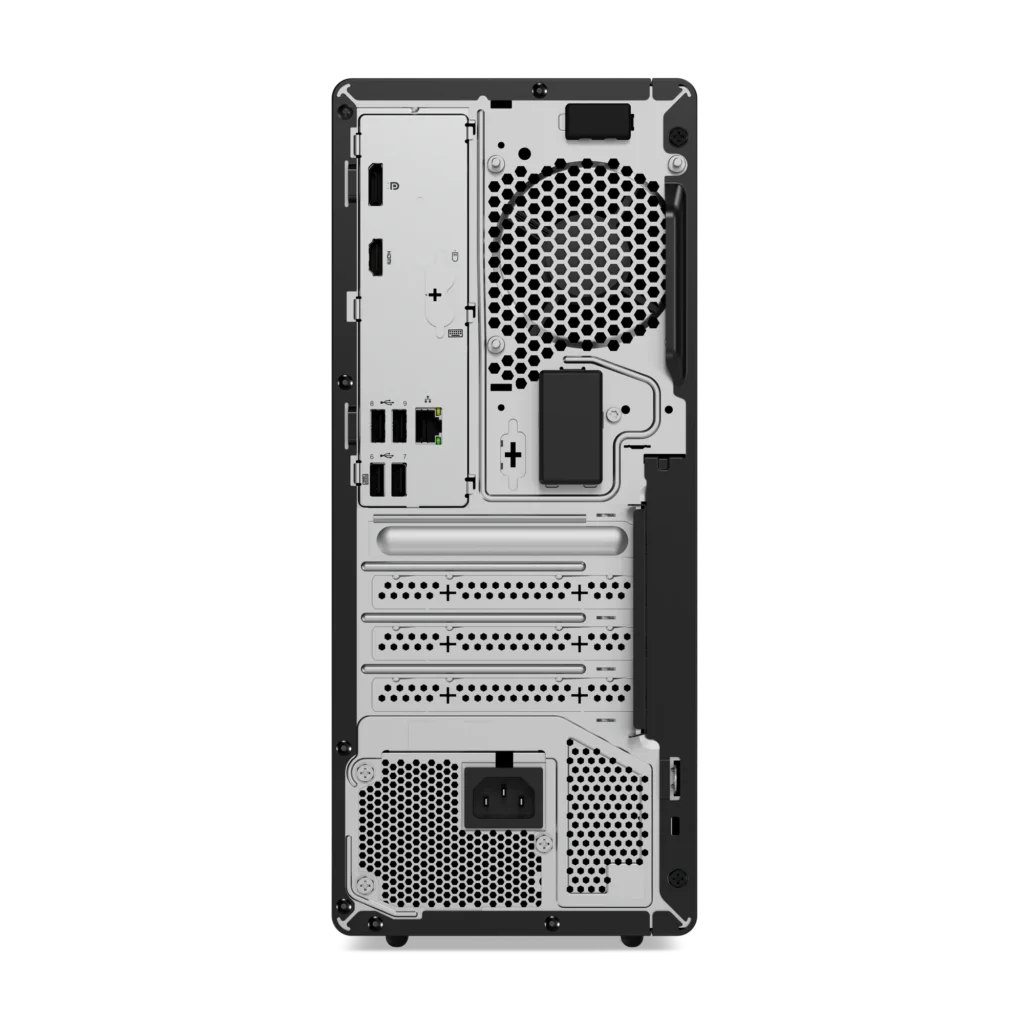

Rear View:

8.	DisplayPort 1.4
9.	HDMI 2.1 (supports resolution up to 4K@60Hz)
10.	4 x USB-A (hi-speed USB)
11.	LAN (Intel vPro® 1G)
12.	Power connector

Features

Versatile Connectivity

The Lenovo ThinkCentre M70t Gen 5 tower is engineered to effortlessly handle multitasking needs. With robust connectivity and ample storage options it makes an ideal centerpiece to your workflow. Plus, the optional Smart Cable feature transforms data sharing and collaboration, making screen projection and device control easier.

Unprecedented Performance

Fueled by up to a 14th Gen Intel^® Core™ processor with Intel vPro^® Enterprise, the ThinkCentre M70t Gen 5 desktop PC is a powerhouse of performance and efficiency. Innovative chip-level AI features optimize CPU performance, fan speed, and energy consumption.

Digital Defense Ensured

Protect your data and business with ThinkShield, our comprehensive suite of security solutions, featuring the discrete Trusted Platform Module (dTPM) to safeguard critical data with encryption. Physical security is reinforced with a Kensington Security Slot™, chassis e-lock, and more, offering unparalleled security.

Championing Sustainability

At Lenovo, we are committed to sustainability and we actively take initiatives to lessen our environmental footprint. The ThinkCentre M70t Gen 5 tower uses 85% post-consumer content (PCC) recycled, Acrylonitrile butadiene styrene (ABS) plastic in the chassis. Plus, packaging relies on a 30% ocean-bound plastic (OBP) thermal shell and 30% OBP bag.

Specification

Processor:	Up to 14th Gen Intel Core™ i7 with Intel vPro Enterprise
Chipset:	Intel® Q670 chipset
Operating System:	Windows 11 Pro
Graphics:	Intel UHD 770 graphics
Memory:	Up to 64GB (5600MHz) 2 x DDR5 UDIMM
Memory DIMM Capacity:	8GB / 16GB / 32GB ECC, 8GB / 16GB / 32GB non-ECC
Storage Type Capacity:	M.2 SSD up to 2TB each
Storage:	Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD
RAID:	No support
Front Ports:	1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)
WLAN:	Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support, M.2 Card
Removable Storage:	3-in-1 Media Card Reader Slim ODD, TWR: Front Accessible Drive Tray
Power Supply:	380W (92% energy efficient) 310W (92% energy efficient) 260W (90% energy efficient) 180W (85% energy efficient)
Expansion Slots:	One PCIe® 3.0 x16, full-height, length ≤ 222.7mm, height ≤ 111.2mm
Expansion Options:	Serial/DP/HDMI/TypeC-DP/VGA5 Thunderbolt
Dimensions (WxDxH):	346mm x 145mm x 296mm / 13.6” x 5.7” x 11.6”
Weight:	Starting at 5.9kg / 12.9lbs
